Instrument cluster

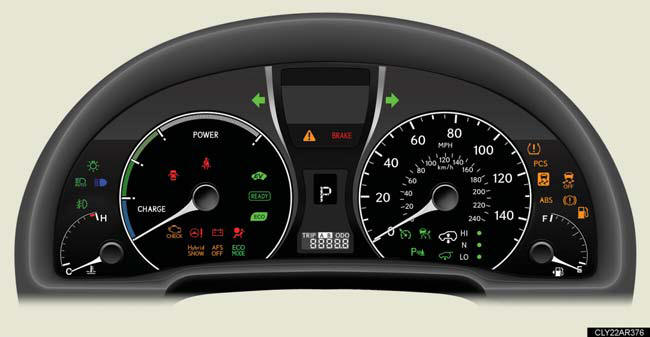

Gauges and meters

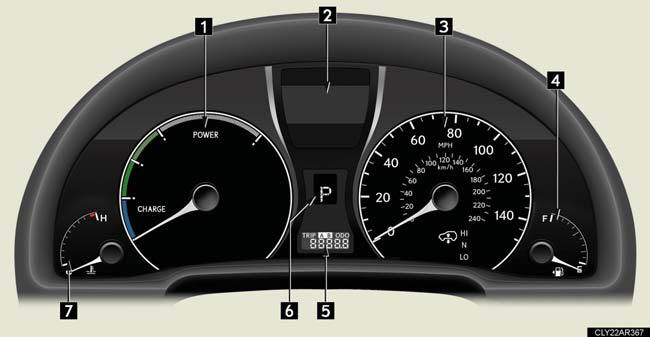

1. Hybrid System Indicator.

1. Hybrid System Indicator.
Displays hybrid system output or regeneration level.
2. Multi-information display.
3. Speedometer.
Displays the vehicle speed.
4. Fuel gauge.
Displays the quantity of fuel remaining in the tank.
5. Odometer and trip meter.
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since
the meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances independently.
6. Shift position and shift range display.
7. Engine coolant temperature gauge.
Displays the engine coolant temperature.

Changing the display

Switches between odometer and

Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.

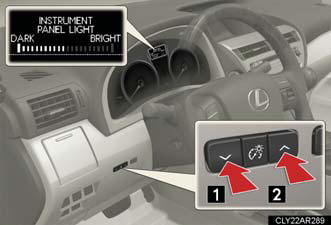

Instrument panel light control

The brightness of the instrument panel lights can be adjusted.

1. Darker.

1. Darker.
2. Brighter.

The meters and display illuminate when

The “POWER” switch is in ON mode.

Hybrid System Indicator

By keeping the indicator within the Eco area, more environment-friendly driving
can be achieved.
The Charge area indicates regeneration* status. Regenerated energy will be
used to charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of energy created
by the movement of the vehicle into electrical energy.

NOTICE:
To prevent damage to the engine and its components
The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely.

Indicators and warning lights

The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.

- Instrument cluster.

- Center panel (without a navigation system).

- Center panel (without a navigation system).

- Center panel (with a navigation system).

- Center panel (with a navigation system).

Indicators

Indicators

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Headlight high beam indicatorTurn signal indicator

Automatic High BeamHeadlight high beam indicator

indicatorAutomatic High Beam
indicator

Tail light indicatorHeadlight indicator

Front fog light indicatorTail light indicator

Cruise control indicatorFront fog light indicator

Radar cruise control indicatorCruise control indicator

Intuitive parking assistRadar cruise control indicator

indicatorIntuitive parking assist
indicator

Slip indicator“AFS OFF” indicator

VSC off indicatorSlip indicator

“ECO MODE” indicatorVSC off indicator

Electronically modulated“ECO MODE” indicator

air suspension indicatorElectronically modulated
air suspension indicator

“Hybrid SNOW” indicator“READY” indicator

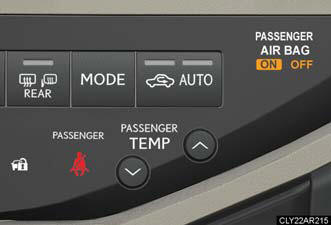

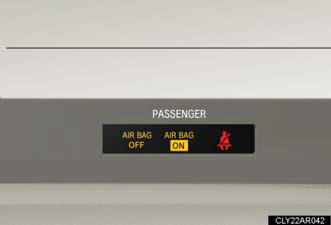

SRS airbag on-off indicator“Hybrid SNOW” indicator

Eco Driving IndicatorSRS airbag on-off indicator

LightEco Driving Indicator
Light

EV drive mode indicatorSRS airbag on-off indicator

*: These lights turn on when the “POWER” switch is turned to the ON modeEV drive mode indicator

*: These lights turn on when the “POWER” switch is turned to the ON mode
to indicate that a system check is being performed. They will turn off after
the hybrid system is on, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Lexus dealer.

Warning lights

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.

*: These lights turn on when the “POWER” switch is turned to ON mode

*: These lights turn on when the “POWER” switch is turned to ON mode
to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by your Lexus dealer.

CAUTION:
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning light not
come on when you start the hybrid system, this could mean that these systems are
not available to help protect you in an accident, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this
occurs.

Multi-information display

The multi-information display presents the driver with a variety of drivingrelated
data including the current outside air temperature.

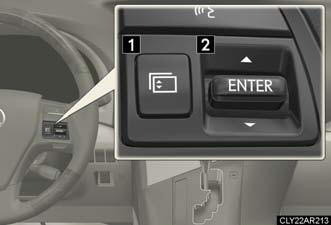

Multi-information switches

1. Menu switch.

1. Menu switch.
Changes modes to electronic
features control mode, customization
mode or back to normal
display mode
2. “ENTER” switch.
Changes trip information items.
This switch is also used to turn
on/off electronic features controls
and to change customization
settings.

Display contents

Display order may vary depending on vehicle condition.

Display order may vary depending on vehicle condition.

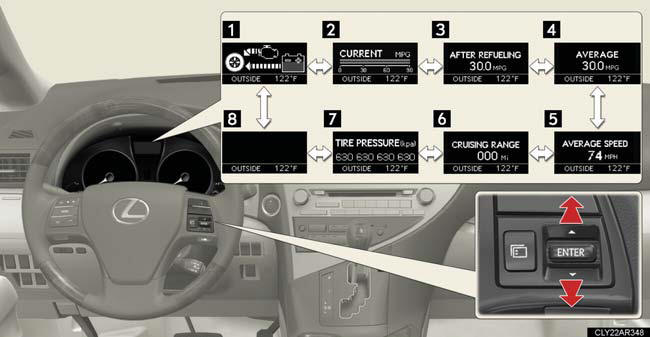

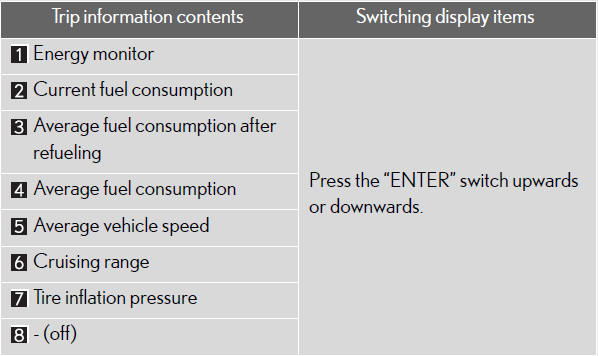

Trip information

Trip information

Energy monitor

Displays the status of the hybrid system.

Current fuel consumption

Displays the current rate of fuel consumption.

Average fuel consumption after refueling

Displays the average fuel consumption since the vehicle was last refueled.

Average fuel consumption

Displays the average fuel consumption since the function was reset
The function can be reset by pushing the “ENTER” switch for longer than
one second when the average fuel consumption is displayed.

Average vehicle speed

Displays the average vehicle speed since the function was reset
The function can be reset by pushing the “ENTER” switch for longer than
one second when the average vehicle speed is displayed.

Cruising range

Displays the estimated maximum distance that can be driven with the
quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not
be updated.

Tire inflation pressure

Displays inflation pressure of each tire. There is no correlation between
the order of the displayed values and the tire positions.
If the inflation pressure of any tire drops a certain amount below the tire inflation
pressure value currently memorized in the system, the displayed values
will be highlighted.
It may take a few minutes to display the tire inflation pressure after the
“POWER” switch is turned to ON mode. It may also take a few minutes to
display the tire inflation pressure after inflation pressure has been adjusted.
If the tire pressure warning light is on or flashing, a message describing the
situation will be displayed.

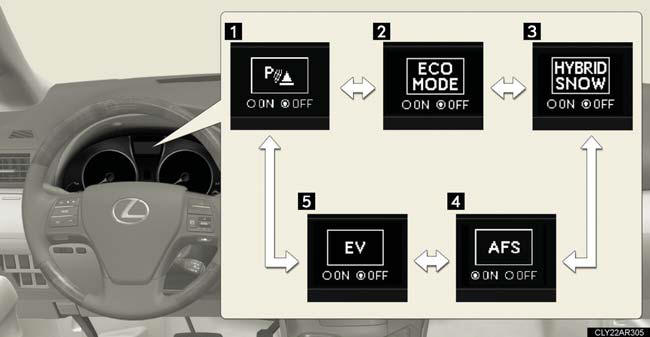

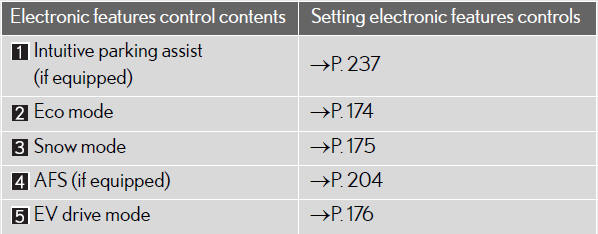

Electronic features control can be turned on/off when

The “POWER” switch is in ON mode.

Conditions for ending electronic features control

In the following situations, the electronic features control will end:
The menu switch is pressed.
The radar cruise control is operated.
Intuitive parking assist starts operating.
No action is performed for some time after the electronic features control
screen is displayed.
A warning message appears after the electronic features control screen is displayed.

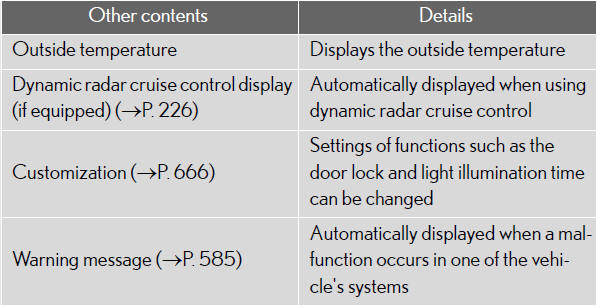

Outside temperature display

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 15 mph [25 km/h]).
When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.).

Customization

Settings (e.g. available languages) can be changed.

CAUTION:
Caution while driving
When operating the electronic features control while driving, take extra notice of
the vehicle's surrounding area.

NOTICE:
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.

Head-up display

The head-up display can be used to project vehicle speed and other information
onto the windshield.

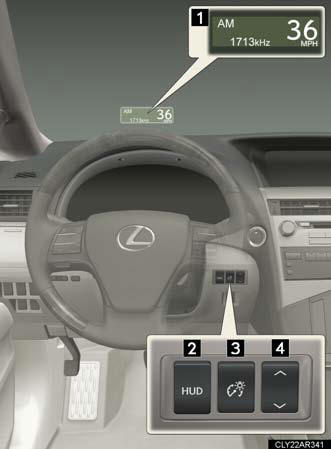

1. Head-up display.

1. Head-up display.
Display brightness will change
automatically according to the
brightness of the surrounding
area.
2. Head-up display main switch.

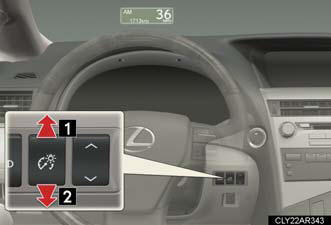

3. Display contrast adjustment
switch.
Display brightness can be
adjusted to the desired level..
4. Display position adjustment
switch.

Head-up display contents

In addition to vehicle speed, the following information will be displayed:

1. Audio display.

1. Audio display.
Displays audio information for
approximately 3 seconds when
the audio system is operated.
2. Dynamic radar cruise control
(if equipped).
Displays the approach warning
message.
3. Turn-by-turn navigation*.
Displays a notification of
upcoming intersections during
navigation system route guidance.
4. Vehicle speed display.
*: Refer to “Navigation System
Owner’s Manual”.

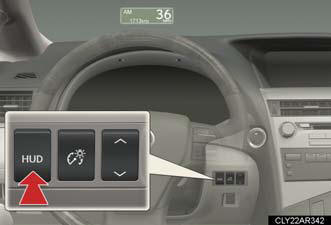

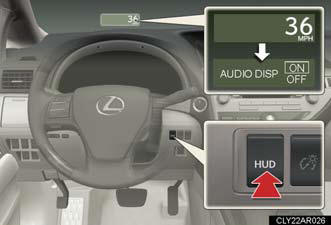

Head-up display main switch

Pressing the button turns the

Pressing the button turns the
head-up display on/off and
changes the vehicle speed display
units as follows:
- Vehicles sold in the U.S.A.
OFF → ON (mph) → ON
(km/h) → OFF.
- Except vehicles sold in the
U.S.A.
OFF → ON (km/h) → ON
(mph) → OFF.

Display adjustment

- Adjusting display contrast

1. Brighter.

1. Brighter.
2. Darker.

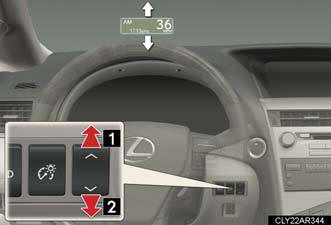

- Adjusting display position

1. Higher.

1. Higher.
2. Lower.

Display customization

The audio mode display can be shown or hidden.

Pressing and holding the head-up

Pressing and holding the head-up
display main switch button for
more than 2 seconds changes the
display to audio display on/off
mode. Press the head-up display
main switch button to turn the
audio display on/off.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than
5 mph (8 km/h).

Brightness of the head-up display

The headlight control sensor detects the brightness of the area surrounding the
head-up display and adjusts the brightness accordingly.

Head-up display

The head-up display may seem dark and hard to see when viewed through sunglasses,
especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

CAUTION:
Before using the head-up display
Check that the position and brightness of the head-up display image does not interfere
with safe driving. Incorrect adjustment of the image's position or brightness
may obstruct the driver's view and lead to an accident, resulting in death or serious
injury.

NOTICE:
To prevent damage to components
Do not place anything on the head-up display opening.

If an object falls into the opening of the

If an object falls into the opening of the
head-up display, remove it immediately.
Also, avoid spilling water or other liquids
near the head-up display opening as this
may cause mechanical damage.
