Using the interior lights

Lexus RX / Lexus RX Owners manual / Interior features / Using the interior lights

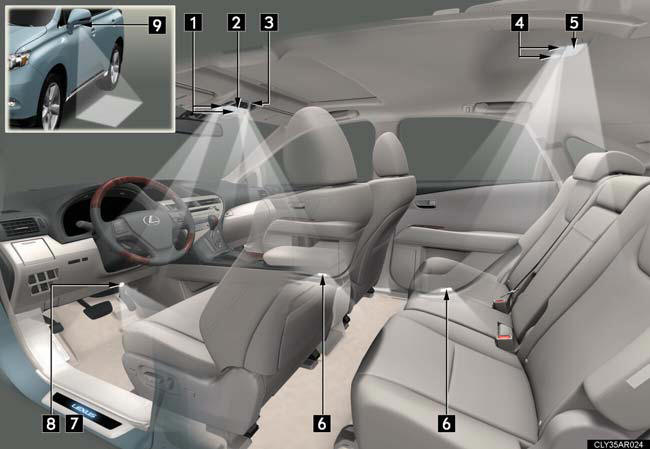

Interior lights list

1. Front personal lights.

1. Front personal lights.
2. Front interior lights.
3. Shift lever light (when the “POWER” switch is in ACCESSORY or
ON mode).
4. Rear personal lights.
5. Rear interior light.
6. Door courtesy lights.
7. Scuff lights (if equipped).
8. Footwell lights.
9. Outer foot lights.

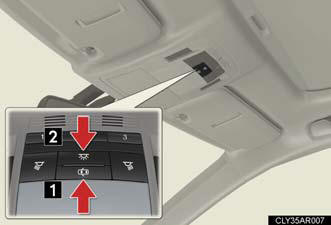

Interior lights

1. Turns the lights on/off linked to

1. Turns the lights on/off linked to
door positions.
2. Turns the lights on/off

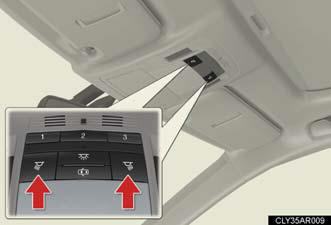

Personal lights

- Front

Turns the light on/off.

Turns the light on/off.

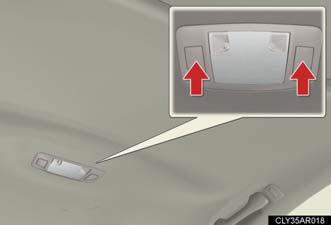

- Rear

Turns the light on/off.

Turns the light on/off.

Illuminated entry system

The lights automatically turn on/off according to “POWER” switch mode, the presence
of the electronic key, whether the doors are locked/unlocked, and whether
the doors are open/closed.

To prevent 12-volt battery discharge

If the interior lights remain on when the door is not fully closed and the interior light
switch (door position on/ off) is on, the lights will go off automatically after 20 minutes.

Customization

Settings (e.g. the time elapsed before the lights turn off) can be changed.
