Some basics

This section describes some of the basic features of your audio/video system.

Some information may not pertain to your system.

Your audio/video system works when the “ENGINE START STOP” switch is turned to ACCESSORY or IGNITION ON mode.

FCC ID : AJDK021

IC ID : 775E−K021

This device complies with Part 15 of the FCC Rules and RSS−Gen and RSS−210 of IC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION: Radio Frequency Radiation Exposure This equipment complies with FCC/ IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS−102 of the IC radio frequency (RF) Exposure rules.

This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).

Co−location: This transmitter must not be co−located or operated in conjunction with any other antenna or transmitter.

 -  Laser products

Do not take this unit apart or attempt to make any changes yourself. This is an intricate unit that uses a laser pickup to retrieve information from the surface of compact discs. The laser is carefully shielded so that its rays remain inside the cabinet.

Therefore, never try to disassemble the player or alter any of its parts since you may be exposed to laser rays and dangerous voltages.

This product utilizes a laser.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

NOTICE

To prevent the battery from being discharged, do not leave the audio/video system on longer than necessary when the engine is not running.

(a) Voice command system

By pushing the switch above, you can operate the voice command system.

By pushing the switch above, you can operate the voice command system.

For the operation of the voice command system and the list of commands, see pages 44 and 49.

(b) Turning the system on and off

“AUDIO”: Push this button to display touch−screen buttons for audio system

“AUDIO”: Push this button to display touch−screen buttons for audio system (audio control mode).

“PWR/VOL”: Push this knob to turn the audio system on and off. Turn this knob to adjust the volume. The system turns on in the last mode used.

You can select the function that enables automatic return to the previous screen from the audio screen. See page 330 for details.

(c) Open the lid

Push the back part of the lid to open.

Push the back part of the lid to open.

Push the lid again to close.

(d) Switching between functions

 - DVD changer image

 - DVD changer image

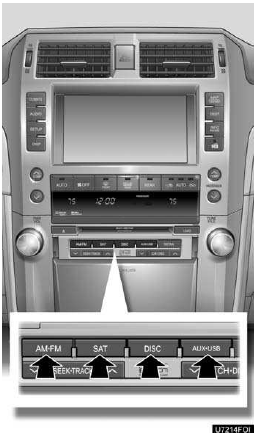

Push the “AM·FM”, “SAT”, “DISC”, “CD” or “AUX·USB” button to turn on the desired mode.

1. Push the “AUDIO” button.

2. Touch “AM”, “FM”, “SAT”, “CD”, “CD/DVD”, “BT”, “AUX” or “USB” tab to turn

2. Touch “AM”, “FM”, “SAT”, “CD”, “CD/DVD”, “BT”, “AUX” or “USB” tab to turn on the desired mode.

Push these buttons or tabs if you want to switch from one mode to another.

If the disc is not set, the CD changer/DVD changer does not turn on.

You can turn off the CD changer/DVD changer by ejecting a disc.

The screen buttons for radio, CD changer, DVD changer, Bluetooth audio player,

The screen buttons for radio, CD changer, DVD changer, Bluetooth audio player, AUX, USB memory and iPod operation are displayed on the screen when the audio control mode is selected.

Touch the tab to select the desired mode when the audio control mode is selected.

INFORMATION

If the system does not respond to a touch of a touch screen button, move your finger away from the screen and then touch it again.

You cannot operate dimmed touch−screen buttons.

Wipe off fingerprints using a glass cleaning cloth. Do not use chemical cleaners to clean the touch screen.

(e) DSP control

1. Push the “AUDIO” button.

2. Touch “Sound” to display the sound adjustment screen.

2. Touch “Sound” to display the sound adjustment screen.

3. Touch “DSP” tab to display this screen.

3. Touch “DSP” tab to display this screen.

4. Touch the desired button.

Surround function:

Touch “On” of “Surround” and touch “OK”.

The surround function will turn on.

Automatic sound levelizer (ASL): When the audio sound becomes difficult to hear due to road noise, wind noise or other noises while driving, touch “On”. The system adjusts to the optimum volume and tone quality according to the speed of car, wind noise or other noise.

5. Touch “OK”.

(f) Tone and balance

Tone

How good an audio program sounds to you is largely determined by the mix of the treble, mid and bass levels. In fact, different kinds of music and vocal programs usually sound better with different mixes of treble, mid and bass.

Balance

A good balance of the left and right stereo channels and of the front and rear sound levels is also important.

Keep in mind that if you are listening to a stereo recording or broadcast, changing the right/left balance will increase the volume of one group of sounds while decreasing the volume of another.

1. Touch “Sound” tab to display this screen.

1. Touch “Sound” tab to display this screen.

2. Touch the desired button.

“Treble” “+” or “–”: Adjust high−pitched tones.

“Mid” “+” or “–”: Adjust mid−pitched tones.

“Bass” “+” or “–”: Adjusts low−pitched tones.

“Front” or “Rear”: Adjusts sound balance between the front and rear speakers.

“L” or “R”: Adjusts sound balance between the left and right speakers.

3. Touch “OK”.

The tone of each mode (for such as AM, FM, CD changer and DVD changer) can be adjusted.

(g) Selecting screen size (DVD changer only)

Before selecting screen size, it is necessary to insert a DVD disc and select DVD mode.

1. Push the “AUDIO” button.

2. Touch “CD/DVD” tab.

3. Touch “Settings”.

3. Touch “Settings”.

5. Touch the desired button.

5. Touch the desired button.

“Normal”:Displays a 3 : 4 screen, with either side in black.

“Wide 1”:Widens the 3 : 4 screen horizontally to fill the screen.

“Wide 2”:Widens the 3 : 4 screen vertically and horizontally, in the same ratio, to fill the screen.

When you touch screen returns. , the previous screen returns.

6. Touch “OK”.

(h) Your CD or DVD changer

When you insert a disc, push the “LOAD” button and gently push the disc in with the label side up. This CD or DVD changer can store up to six discs.

The changer is intended for use with 4.7 in.

(12 cm) discs only.

NOTICE

NOTICE

Do not stack up two discs for insertion, or it will cause damage to the changer. Insert only one disc into the slot at a time.

Never try to disassemble or oil any part of the changer. Do not insert anything other than a disc into the slot.

(i) AUX port

The sound of portable audio players connected to the AUX port can be enjoyed.

Push the “AUX·USB” button, or push the “AUDIO” button to display audio screen and touch “AUX” tab to switch to AUX mode. When the portable audio player is not connected to the AUX port, the tab will tone down. For details, refer to the “Owner’s Manual”.

(j) USB port

It is available to connect a USB memory/iPod device with the USB port.

When the USB memory/iPod is not connected to the USB port, the tab will tone down. For details, see “(a) Connecting a USB memory or iPod” on page 254.
