Automatic air conditioning controls

Operations such as changing the air outlets or fan speed are carried out on the screen.

To display the air conditioning control screen, push the “CLIMATE” button.

Without rear air conditioning system

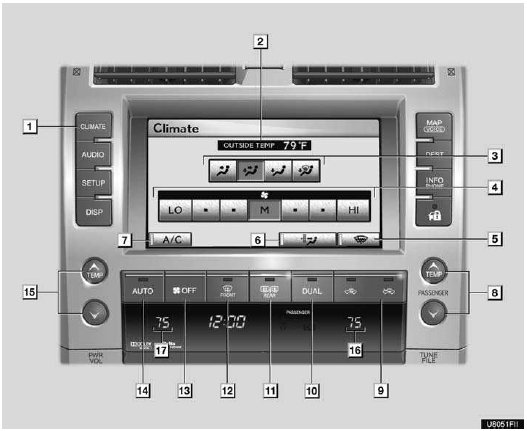

1.“CLIMATE” button

1.“CLIMATE” button

(Air conditioning operation screen display button)

2.Outside temperature display

(In degrees Fahrenheit or Centigrade)

3.Air flow control buttons

4. Fan speed control buttons

5. Windshieled wiper de−icer button

6. Micro dust and pollen filter button

7. “A/C”

8. “PASSENGER TEMP” buttons

(Passenger side temperature control button) When you touch this button, the “DUAL” indicator light will be yellow, and then mode will be independent mode

9. Air intake control button

10. “DUAL” button

(Temperature setting mode change button)

11. Rear window defogger button

12. Windshield air flow button

13. “OFF” button

14. “AUTO” button

15. “TEMP” buttons

(Driver side temperature control button)

16. Passenger side temperature display

(In degrees Fahrenheit or Centigrade)

17. Driver side temperature display

(In degrees Fahrenheit or Centigrade)

With rear air conditioning system

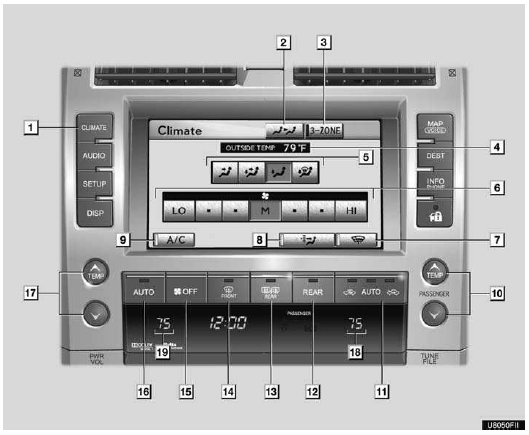

1. “CLIMATE” button

1. “CLIMATE” button

(Air conditioning operation screen display button)

2. Rear air conditioning control touch−screen button

3. “3−ZONE”

(Temperature setting mode change touch−screen button)

4. Outside temperature display

(In degrees Fahrenheit or Centigrade)

5. Air flow control buttons

6. Fan speed control buttons

7. Windshieled wiper de−icer button

8. Micro dust and pollen filter button

9. “A/C”

10. “PASSENGER TEMP” buttons

(Passenger side temperature control button)

When you touch this button, the “3−ZONE” indicator light will be yellow, and then mode will be independent mode

11. Air intake control button

12. “REAR” button

13. Rear window defogger button

14. Windshield air flow button

15. “OFF” button

16. “AUTO” button

17. “TEMP” buttons

(Driver side temperature control button)

18. Passenger side temperature display

(In degrees Fahrenheit or Centigrade)

19. Driver side temperature display

(In degrees Fahrenheit or Centigrade)

(a) Climate control

Air outlets and fan speed are automatically adjusted according to the temperature setting.

The “ENGINE START STOP” switch must be in IGNITION ON mode.

Push the “CLIMATE” button to display the air conditioning control screen.

Push the “CLIMATE” button to display the air conditioning control screen.

INFORMATION

When the “ENGINE START STOP” switch is turned on, the air conditioning system settings will be set to those that were in use the last time the “ENGINE START STOP” switch was turned off. Air conditioning system settings are memorized individually on each electronic key, so the settings reproduced will be specific to the key that is used.

During use, various odors from inside and outside the vehicle may enter into and accumulate in the air conditioning system. This may then cause odor to be emitted from the vents.

To reduce potential odors from occurring:

It is recommended that the air conditioning system be set to outside air mode prior to turning the vehicle off.

The start timing of the blower may be delayed for a short period of time immediately after the air conditioning system is started in automatic operation mode.

NOTICE

To prevent the battery from being discharged, do not leave the air conditioning on longer than necessary when the engine is not running.

By pushing the switch above, you can operate the voice command system.

By pushing the switch above, you can operate the voice command system.

For the operation of the voice command system and the command, see pages 44 and 49.

(b) Using automatic air conditioning system

Switching to automatic operation mode

Push the “AUTO” button.

Push the “AUTO” button.

The air conditioning system begins to operate.

Air outlets and fan speed are automatically adjusted according to the temperature setting.

Push “OFF” button to turn the air conditioning system off.

INFORMATION

Turning cool box on also turns on front air conditioning system.

When the outside temperature is 32 F (0 C) or below, the cool box may not operate.

Setting the vehicle interior temperature

Push the “  ” button on

Push the ““TEMP” to increase the temperature and “  ” button on “TEMP” to increase the temperature and “ ” to decrease the temperature.

“DUAL” button (with out rear air conditioning system)

“DUAL” button (with out rear air conditioning system)

This button is used to set the temperatures independently for the driver’s seat and front passenger seat.

When the “DUAL” button indicator is on, the temperature for the driver’s seat and front passenger seat can be adjusted separately.

“3−ZONE” (with rear air conditioning system) —

“3−ZONE” (with rear air conditioning system) —

This button is used to set the temperatures independently for the driver’s, front passenger’s and rear seats.

When the “3−ZONE” indicator is on, the temperature for the driver’s, front passenger’s and rear seats can be adjusted separately.

Switching the air intake control to automatic mode (with rear air conditioning system)

Push the air intake control button to switch to automatic mode.

Push the air intake control button to switch to automatic mode.

The air conditioning system automatically switches between outside air and recirculated air modes.

Adjusting the sensitivity of the air intake control in automatic mode (with rear air conditioning system)

You can adjust smog sensor sensitivity.

The sensitivity level is set to be higher toward “+” and lower toward “–” on “Vehicle Customization” screen.

For “Vehicle Customization” screen, see “— Vehicle customization” on page 400.

(c) Adjusting the settings manually

Setting the fan speed

Without rear air conditioning system

Without rear air conditioning system

With rear air conditioning system

With rear air conditioning system

1. Fan speed at low

2. Fan speed at high

The fan speed can be set to your desired speed by touching the appropriate fan speed control button.

Pushing the “OFF” button turns the fan off.

Setting the vehicle interior temperature

To adjust the temperature setting, push the “ ” button on “TEMP” to increase

To adjust the temperature setting, push the “ ” button on “TEMP” to increase the temperature and push the “ ” button to decrease the temperature. When the “DUAL” button indicator is on, the temperature for the driver’s seat and front passenger seat can be adjusted separately.

(without rear air conditioning system) When the “3−ZONE” indicator is on, the temperature for the driver’s, front passenger’s and rear seats can be adjusted separately.

(with rear air conditioning system)

Switching the air outlets

Without rear air conditioning system

Without rear air conditioning system

With rear air conditioning system

With rear air conditioning system

1. Panel

2. Bi−level

3. Floor

4. Floor/windshield

The outlets from which air is delivered can be selected manually by touching the touch−screen button.

The air flow shown on the display indicates the following.

Air flows to the upper body (Panel)

Air flows to the upper body (Panel)

Air flows to the upper body and feet (Bi−level)

Air flows to the upper body and feet (Bi−level)

Air flows to the feet (Floor)

Air flows to the feet (Floor)

Air flows to the feet and the windshield defogger operates (Floor/ windshield)

Air flows to the feet and the windshield defogger operates (Floor/ windshield)

1. Without rear air conditioning system

2. Only in automatic mode (Air may not always flow.)

Switching between outside air and recirculated air modes

1. Recirculated air mode

1. Recirculated air mode

2. Automatic mode

3. Outside air mode

Push the air intake control button.

The mode switches between recirculated air mode, automatic mode (with rear air conditioning system) and outside air mode each time the button is pushed.

When the system is switched to automatic mode, the air conditioning system operates automatically.

(d) Rear air conditioning controls

(With rear air conditioning system)

1. “REAR OFF” button

1. “REAR OFF” button

2. Temperature control

3. Fan speed control

4. “REAR AUTO” button

Touch the “REAR AUTO” button.

The air conditioning system will operate, and air outlets and fan speed will be adjusted automatically.

To adjust the temperature setting, push the “ temperature and push the “  ” button ” button on “TEMP” to increase the temperature and push the “ to decrease the temperature. ” button to decrease the temperature.

The fan speed can be set to your desired speed by touching the appropriate fan speed control button.

Touch “REAR OFF” to turn the fan off.

INFORMATION

When the “ENGINE START STOP” switch is turned on, the air conditioning system settings will be set to those that were in use the last time the “ENGINE START STOP” switch was turned off. Air conditioning system settings are memorized individually on each electronic key, so the settings reproduced will be specific to the key that is used.

(e) Defogging the windshield

The air conditioning system operates automatically.

The air conditioning system operates automatically.

Recirculated air mode will automatically switch to outside air mode. It is not possible to return to recirculated air mode when the switch is on.

CAUTION

To prevent the windshield from fogging up

Do not use the windshield air flow button during cool air operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.

(f) Adjusting the position of and opening and closing the air outlets

Front center outlets

Front center outlets

1. Direct air flow to the left or right, up or down

2. Turn the knob to open or close the vent

Front side outlets

Front side outlets

1. Direct air flow to the left or right, up or down

2. Turn the knob to open or close the vent

Rear outlets (without rear air conditioning system)

Rear outlets (without rear air conditioning system)

1. Direct air flow to the left or right, up or down

2. Turn the knob to open or close the vent

INFORMATION

Using automatic mode

Fan speed is adjusted automatically according to the temperature setting and ambient conditions.

As a result, the following may occur:

Immediately after the button is pushed, the fan may stop for a while until warm or cool air is ready to flow.

Cool air may flow to the area around the upper body when the heater is on.

Using the system in recirculated air mode

The windows will fog up more easily if recirculated air mode is used for an extended period.

Switching between outside air and recirculated air modes

Recirculated air mode or outside air mode may be automatically switched to in accordance with the temperature setting and the inside temperature.

When the outside temperature exceeds 75 F (24 C) and the air conditioning system is on

In order to reduce the air conditioning power consumption, the air conditioning system may switch to recirculated air mode automatically. This may also reduce fuel consumption.

Recirculated air mode is selected as a default mode when the “ENGINE START STOP” switch is turned to IGNITION ON mode.

It is possible to switch to outside air mode at any time by pushing the air intake control button.

Window defogger feature

Recirculated air mode may automatically switch to outside air mode in situations where the windows need to be defogged.

When outside air temperature is below 32 F (0 C)

The cooling and dehumidification function may not operate even when “A/C” is on.

When the indicator light on “A/C” flashes

Touch “A/C” to turn off the air conditioning system and turn it on again. There may be a problem in the air conditioning system if the indicator light continues to flash.

Turn the air conditioning system off and have it inspected by your Lexus dealer.

Automatic air intake change mode (with rear air conditioning system)

In automatic mode, the system automatically switches between recirculated air and outside air modes according to whether the system detects harmful substances such as exhaust gas in the air outside.

(g) Windshield wiper de−icer

This feature is used to prevent ice from building up on the windshield and wiper blades.

The windshield wiper de−icer can be operated when the “ENGINE START STOP” switch is in IGNITION ON mode.

Without rear air conditioning system

Without rear air conditioning system

With rear air conditioning system

With rear air conditioning system

Turns the windshield wiper de−icer on/off.

The windshield wiper de−icer will automatically turn off after approximately 15 minutes.

CAUTION

When the windshield wiper de−icer is on

Do not touch the lower part of the windshield or the side of the front pillars, as the surfaces can become very hot and burn you.

(h) Rear window and outside rear view mirror defogging

To turn the electric rear window and outside rear view mirror defogger on,

To turn the electric rear window and outside rear view mirror defogger on, push the button above.

The “ENGINE START STOP” switch must be in IGNITION ON mode.

The thin heater wires on the inside of the rear window and the heater panels in the outside rear view mirrors will quickly clear the surface.

Keep your hands off the mirror faces when the system is on.

The indicator light is on when the defogger is operating.

CAUTION

When the outside rear view mirror defoggers are on, do not touch the outside surface of the rear view mirror as it can become very hot and burn you.

The defoggers will automatically turn off after 15 to 255 minutes. The operation time changes according to the ambient temperature and vehicle speed.

If further defrosting or defogging is desired, simply actuate the switch again.

When the surface has cleared, push the button once again to turn the defogger off.

Continuous use may cause the battery to discharge, especially during stop−and−go driving. The defogger is not designed to dry rain water or to melt snow.

If the outside rear view mirrors are heavily coated with ice, use a spray de−icer before operating the system.

NOTICE

When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires or connectors.

To prevent the battery from being discharged, turn the switch off when the engine is not running.

(i) Micro dust and pollen filter

Without rear air conditioning system

Without rear air conditioning system

With rear air conditioning system

With rear air conditioning system

Touch the micro dust and pollen filter button.

Outside air mode switches to recirculated air mode. Pollen is removed from the air flows to the upper part of the body.

Usually the system will turn off automatically after approximately 3 minutes.

To stop the operation, touch the micro dust and pollen filter button again.

INFORMATION

In order to prevent the window from fogging up when the outside air is cold, the following may occur:

Outside air mode does not switch to recirculated air mode.

The air conditioning system operates automatically.

The operation cancels after 1 minute.

In rainy weather, the windows may fog up. Push the windshield air flow button.

(j) Outside temperature display

Without rear air conditioning system

Without rear air conditioning system

With rear air conditioning system

With rear air conditioning system

Outside temperature is displayed on the screen.

The displayed temperature ranges from −40 F (−40 C) up to 122 F (50 C).

If the temperature shows “− −” or “E”, take your vehicle to your Lexus dealer.

In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change.

When stopped, or driving at low speeds (less than 15.5 mph [25 km/h]) When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)

    See also:

    Selecting and scanning files
     - Selecting a file Turn the “TUNE/SEL” knob or press “” or “” on the “SEEK•TRACK” button to select the desired file.  - Scanning the files in a folder Press the “ ...

    Battery
    Check the battery as follows:  - Battery exterior Make sure that the battery terminals are not corroded and that there are no loose connections, cracks, or loose clamps. 1. Terminals 2. H ...

    Parts list: long-term emission defect warranty
    The parts listed here are covered for seven years or 70,000 miles from the vehicle’s in-service date, whichever occurs first. Air Conditioning System • A/C amplifier • Blower motor with ...
