Antenna location and effective range

Antenna location

1.Antenna outside cabin

1.Antenna outside cabin

2. Antennas inside cabin

3. Antenna outside luggage com- partment

 - Effective range (areas within which the electronic key is detected)

 - When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of either of the outside front door handle.

 - When starting the engine or changing “ENGINE START STOP” switch modes

The system can be operated when the electronic key is inside the vehicle.

 - When opening the glass hatch and locking or unlocking the back door.

This system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of the back door handle.

Operation signals

Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: once; Unlocked: twice)

When the door cannot be locked by the lock sensor on the upper part of the door handle

Touch both lock sensors on the upper and lower part of the door handle simultaneously.

Alarms and warning indicators

Alarms and warning indicators

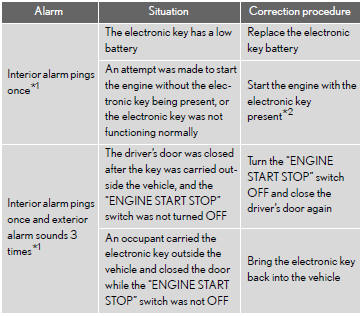

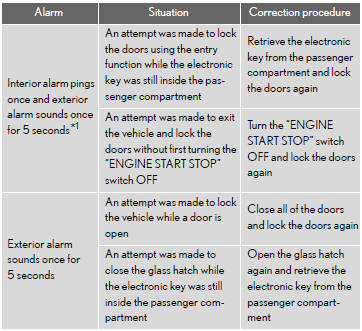

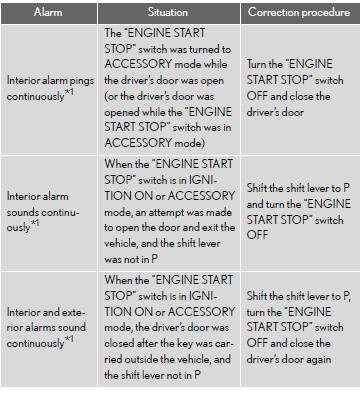

A combination of exterior and interior alarms as well as warning messages shown on the multi-information display is used to prevent theft of the vehicle and accidents resulting from erroneous operation.

• When a warning message is shown on the multi-information display Take appropriate measures in response to the warning message on the multi- information display.

*1: A message will be shown on the multi-information display in the instrument

*1: A message will be shown on the multi-information display in the instrument cluster.

*2: If the engine does not start when the electronic key is inside the vehicle, the electronic key battery may be depleted or there may be difficulties receiving signal from the key.

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again.

Switching the door unlock function

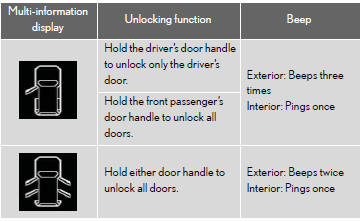

It is possible to set which doors the entry function unlocks.

switch OFF.  Turn the “ENGINE START STOP” switch OFF.

is turned off, press and hold  or When the indicator on the key surface is turned off, press and hold   for approximately 5 seconds while or pressing  on the key.  for approximately 5 seconds while pressing The setting changes each time an operation is preformed, as shown below. (When on the key.

The setting changes each time an operation is preformed, as shown below. (When changing the setting continuously, release the buttons, wait for at least 5 seconds, and repeat .)

To prevent unintended triggering of the alarm, unlock the doors using the wireless

To prevent unintended triggering of the alarm, unlock the doors using the wireless remote control and open a door once after the settings have been changed. (If a door is not opened within 60 seconds after again and the alarm will automatically be set). is pressed, the doors will be locked again and the alarm will automatically be set).

In case that the alarm is triggered, immediately stop the alarm.

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic key battery and the vehicle battery from being discharged while the vehicle is not in operation for a long time.

• In the following situations, the smart access system with push-button start may take some time to unlock the doors.

• The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside of the vehicle for 10 minutes or longer.

• The smart access system with push-button start has not been used for 5 days or longer.

• If the smart access system with push-button start has not been used for 14 days or longer, the doors cannot be unlocked at any doors except the driver’s door.

In this case, take hold of the driver’s door handle, or use the wireless remote control or the mechanical key, to unlock the doors.

Conditions affecting operation

The smart access system with push-button start uses weak radio waves. In the fol- lowing situations, the communication between electronic key and the vehicle may be affected, preventing the smart access system with push-button start and wireless remote control from operating properly. (Way of coping: →P. 744)

• When the electronic key battery is depleted

• Near a TV tower, electric power plant, gas station, radio station, large display, airport or other facility that generates strong radio waves or electrical noise

• When carrying a portable radio, cellular phone, cordless phone or other wire- less communication devices

• When the electronic key is in contact with, or is covered by the following metal- lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

• When multiple electronic keys are in the vicinity

• When another wireless key (that emits radio waves) is being used nearby

• When carrying the electronic key together with the following devices that emit radio waves

• Another vehicle’s electronic key or a wireless key that emits radio waves

• Personal computers or personal digital assistants (PDAs)

• Digital audio players

• Portable game systems

• If window tint with a metallic content or metallic objects are attached to the rear window

Note for the entry function

• Even when the electronic key is within the effective range (detection areas), the system may not operate properly in the following cases:

• The electronic key is too close to the window, near the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to the window when the glass hatch is opened.

• The electronic key is on the instrument panel, luggage cover or floor, or in the glove box.

• Do not leave the electronic key on top of the instrument panel or near the door pockets when exiting the vehicle. Depending on the radio wave reception con- ditions, it may be detected by the antenna outside the cabin and the door will become lockable from the outside, possibly trapping the electronic key inside the vehicle.

• As long as the electronic key is within the effective range, the doors may be locked or unlocked by anyone. However, only the doors detecting the elec- tronic key can be used to unlock the vehicle.

• The doors may lock or unlock if the electronic key is within the effective range and a large amount of water splashes on the door handle, such as in the rain or in a car wash. The doors will automatically be locked after approximately 60 seconds if a door is not opened and closed.

• If the wireless remote control is used to lock the doors when the electronic key is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

Note for locking the doors

• Touching the door lock sensor while wearing gloves may delay or prevent lock operation. Remove the gloves and touch the lock sensor again.

• When the lock operation is performed using the lock sensor, recognition signals will be shown up to two consecutive times. After this, no recognition signals will be given.

• If the door handle becomes wet while the electronic key is within the effective range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.

(2 m) or more separate from the vehicle while the vehicle is being washed. (Take care to ensure that the key is not stolen.) • If the electronic key is inside the vehicle and a door handle becomes wet during a car wash, a message may be shown on the multi-information display and a buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.

• The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock sensor on the lower part of the door handle.

• Fingernails may scrape against the door during operation of the door handle.

Be careful not to injure fingernails or damage the surface of the door.

Note for the unlocking function

• Gripping the door handle when wearing a glove may not unlock the door.

• A sudden approach to the effective range or door handle may prevent the doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.

• If there is another electronic key in the detection area, it may take slightly longer to unlock the doors after the door handle is gripped.

When the vehicle is not driven for extended periods

• To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the vehicle.

• The smart access system with push-button start can be deactivated in advance.

To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention may not function.)

If the smart access system with push-button start does not operate properly

• Locking and unlocking the doors: Use the mechanical key.

• Starting the engine.

Electronic key battery depletion

• The standard battery life is 1 to 2 years.

• If the battery becomes low, an alarm will sound in the cabin when the engine stops.

• As the electronic key always receives radio waves, the battery will become depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery may be depleted. Replace the battery when nec- essary.

• The smart access system with push-button start or the wireless remote con- trol does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

• To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the following electrical appliances that produce a magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Glass top ranges

• Table lamps

When the electronic key battery is fully depleted

Customization

Settings (e.g. smart access system with push-button start) can be changed.

Certification for the smart access system with push-button start

U.S.A.

FCC ID: NI4TMIMB-2

FCC ID: NI4TMLF8-21

FCC ID: HYQ14ACX         FCC ID: HYQ14ADF

FCC ID: HYQ13CZM         FCC ID: HYQ13CZN

NOTE:

This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Canada

NOTE:

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device.

CAUTION

Caution regarding interference with electronic devices

• People with implanted pacemakers or cardiac defibrillators should keep away from the smart access system antennas. The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Lexus dealer for details, such as the frequency of radio waves and timing of emitting the radio waves. Then, consult your doctor to see if you should disable the entry function.

• Users of any electrical medical device other than implanted pacemakers and implanted cardiac defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves.

Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Lexus dealer for details on disabling the entry function.
