Playing DVD video

Press the “DISC” button or select disc mode to display DVD video.

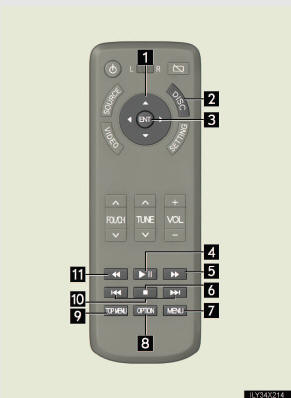

- Controller

1 Selecting an icon

1 Selecting an icon
2 Turning on the DVD mode
3 Inputting the selected icon
4 Playing/pausing a disc
5 Fast forwarding a disc during playback and forward slowly during pause
6 Stopping a screen
7 Turning on the menu
8 Turning on the control icon screen
9 Turning on the title selection screen
10 Press to select a chapter
Press and hold to fast forward or rewind a chapter
11 Rewinding a disc

- Control icon screen
Press the “OPTION” button on the controller if no icons are shown while watching a DVD video, and the following screen appears.

1 Hide the buttons

1 Hide the buttons
2 Setting screen appears
3 Menu screen appears
4 Rewind
5 Stop
6 Play/pause
7 Fast forward

If you select an icon, the operation appears on the screen when you select an icon, the operation relevant to that control is not permitted.

- Settings screen
Select “Settings” on the control icon screen, the following screen appears.

1 Change initial setting

1 Change initial setting
2 Return to previous screen
3 Search by title
4 Display the predetermined scene and start playing from there
5 Change audio language
6 Change subtitle language

Turning on or off the control icons

Press the “OPTION” button on the controller to turn on the control icons.

Press the “OPTION” button on the controller once again or select “Hide Buttons” to turn off the control icon.

Turning on the title selection screen

Press the “TOP MENU” button on the controller or select “Top Menu” to turn on the title selection screen. For the operation of the title selection screen, see the separate manual for the DVD disc.

Turning on the menu screen

Press the “MENU” button on the controller or select “Menu” to turn on the menu screen. For the operation of the menu screen, see the separate manual for the DVD disc.

Fast forwarding/rewinding a disc

Press , or press and hold or or, or press and hold . or Slow playback.

Slow playback

Select . and then select Returning to the previous screen.

Returning to the previous screen

Select “Return” to return to the previous screen. For the operation of the menu screen, see the separate manual for the DVD disc.

Searching for a desired screen

- Searching by title
screen. Select “Search” on the control icon screen.

then select “OK”. Input the desired title number and then select “OK”.

:Returns to the previous screen:Deletes the last input number - Searching by chapter:Returns to the previous screen - Searching by chapter
Press to select a chapter. or Changing the subtitle language to select a chapter.

Changing the subtitle language

screen.Select “Subtitle” on the settings screen.

Select “Subtitle”.

Select “Subtitle”.

Each time you select “Subtitle”, the next available language is selected.

“Hide”: Hides the control icons
screen: Returns to the previous screen

Changing the audio language

screen.Select “Audio” on the setting screen.

Select “Audio”.

Select “Audio”.

Each time you select “Audio”, the next available language is selected.

screen: Returns to the previous screen

Changing the angle (If the angle option is available)

screen.Select “Angle” on the setting screen.

Select “Angle”.

Select “Angle”.

Each time you select “Angle”, the next available angle is selected.

screen: Returns to the previous screen

Initial DVD setup

- Displaying “Setup Menu” screen
screen. Select “Setup” on the control icon screen.

►Page 1 Select the setting to be changed.

Page 1

After you change the settings,

After you change the settings, select “OK”.

The initial setting screen will be turned off and return to the picture previously.

“Default”:Restores default settings

“Page 2”:Go to page 2

screen: Returns to the previous screen

Page 2

- Setting audio language

- Setting audio language
Select “Audio Language”.

on the “Audio Language”Select the language you want to hear on the “Audio Language” screen.

If you cannot find the desired language, select “Other” and input the desired language code.

- Setting subtitle language
Select “Subtitle Language”.

on the “Subtitle Language”Select a language you want to read on the “Subtitle Language” screen.

If you cannot find the desired language, select “Other” and input the desired language code.

- Setting menu language
Select “DVD Language”.

on the “DVD Language”Select the language you want to read on the “DVD Language” screen.

If you cannot find the desired language, select “Other” and input the desired language code.

- Setting angle mark
If the DVD has angle options, you can turn the angle mark on or off.

Select “Angle Mark”.

- Parental lockSelect “ON” or “OFF”.

- Parental lock
Select “Parental Lock”.

the “Enter Key Code”Enter the 4-digit personal code on the “Enter Key Code” screen.

If you enter wrong numbers, select to delete the numbers. to delete the numbers.

Select a parental level (1 - 8).

- Setting sound dynamic range
The difference between the lowest volume and the highest volume can be adjusted.

Select “Sound Dynamic Range”.

Select “MAX”, “STD” or “MIN”.

- Entering a language code
If you select “Other” on the “Audio Language” screen, “Subtitle Language” screen or “DVD Language” screen, you can select a language by entering the 4-digit language code if that language is available.

Enter the 4-digit language code.

If you enter wrong numbers, select to delete the numbers. to delete the numbers.

Setup operation from the front seatSelect “OK”.

Setup operation from the front seat

This screen appears when a front passenger selects the setup menu.

Rear passengers can cancel this

Rear passengers can cancel this setup operation by selecting “Play”. The player will resume normal play.

Likewise, a front passenger can cancel a rear passenger’s selection of the setup menu.

- Error messages
If “Region code error” is displayed, check if the region code printed on the DVD matches the player’s region code.

If a different message is displayed:
