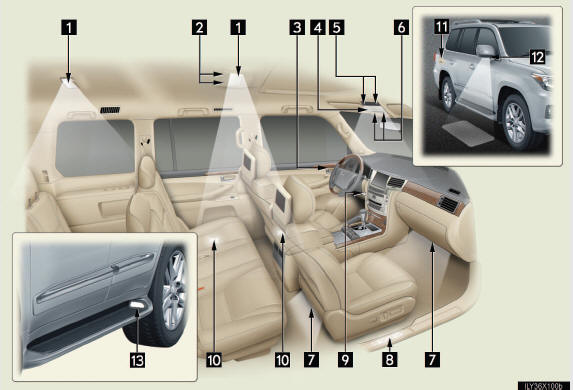

Interior lights list

1 Rear interior light

1 Rear interior light
2 Rear personal lights
3 Inside door handle light
4 Shift lever light (when the “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode)
5 Front interior lights
6 Front personal lights
7  Footwell lights
8 Scuff lights (if equipped)
9 “ENGINE START STOP” switch light
10 Door courtesy light
11 Luggage compartment light
12 Outer foot lights
13 Running board lights

Interior lights

Front

1 OFF”

1 OFF”
2 Door position on/off
3 “ON”

Rear

1 Door position

1 Door position
2 On

Personal lights

Front

On/off

On/off

Rear

On/off

On/off

Luggage compartment light

1 Off

1 Off
2 Door position

- Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP” switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are open/closed.

- To prevent battery discharge
If the following lights remain on when the door is not fully closed, “ENGINE START STOP” switch is OFF and the interior light switch is in the door position, the lights will go off automatically after 20 minutes: l “ENGINE START STOP” switch light
l Front interior lights
l Rear interior lights
l Inside door handle light
l Footwell lights
l Outer foot lights
l Running board lights

- Customization
Settings (e.g. The time elapsed before lights turn off) can be changed.
