Seat heaters and ventilators

The seat heaters and ventilators heat the seats and maintain good air- flow by blowing air from the seats.

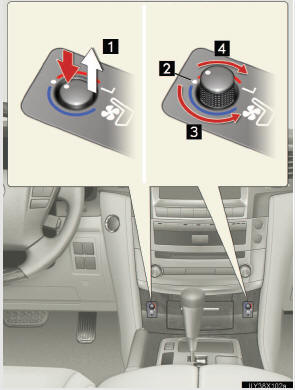

- Front seat heaters/ventilators (if equipped)

1 Press the knob to release it.

1 Press the knob to release it.
Press the knob back in when finished adjusting the tem- perature or the seat air flow.

2 Off
3 Blows air from the seat
The further you turn the knob counterclockwise, the stron- ger the airflow becomes.

4 Turns the seat heater on
The further you turn the knob clockwise, the warmer the seat becomes.

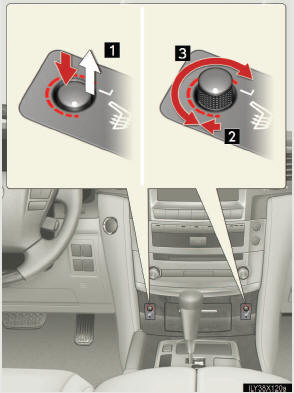

- Front seat heaters (if equipped)

1 Press the knob to release it.

1 Press the knob to release it.
Press the knob back in when finished adjusting the tem- perature.

2 On
3 Adjusts the seat tempera- ture
The further you turn the knob clockwise, the warmer the seat becomes.

- Second seat heaters (if equipped)

1 For left second seat

1 For left second seat
2 For right second seat
3 High heating temperature
Low heating temperature To turn on the seat heater, press “HI” or “LO”.
The indicator light on “HI” or “LO” switch indicates that the seat heater is on.

5 Off

- The seat heaters and ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.

- Replacing the air filters
Filters are installed in the seat ventilators. For replacement of the filters, contact your Lexus dealer.

CAUTION

- Burns
l Use caution when seating the following persons in a seat with the seat heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal- lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
l Do not cover the seat with anything when using the seat heater. Using the seat heater with a blanket or cushion increases the temperature of the seat and may lead to overheating.
l Do not use the seat heater more than necessary. Doing so may cause minor burns or overheating.

NOTICE

- To prevent damage to the seat heaters and ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.

- To prevent battery discharge
Turn the seat heaters and ventilators off when the engine is not running.
