If a warning light turns oor a warning buzzer sounds

Lexus LX / Lexus LX Owners Manuals / Whetrouble arises / Steps to take iaemergency / If a warning light turns oor a warning buzzer sounds

Calmly perform the following actions if any of the warning lights turn on or flash. If a light turns on or flashes, but then turns off, this does not necessarily indicate a malfunction in the system.

Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.

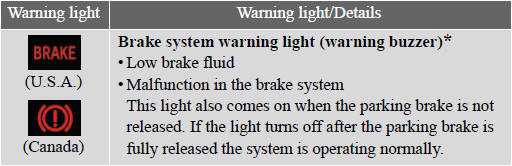

The following warning indicates a possible problem in the brake system. Immediately stop the vehicle in a safe place and contact your Lexus dealer.

*: Parking brake engaged warning buzzer:

*: Parking brake engaged warning buzzer: A buzzer sounds to indicate that the parking brake is still engaged (with the vehicle having reached a speed of 3 mph [5 km/h]).

Stop the vehicle immediately.

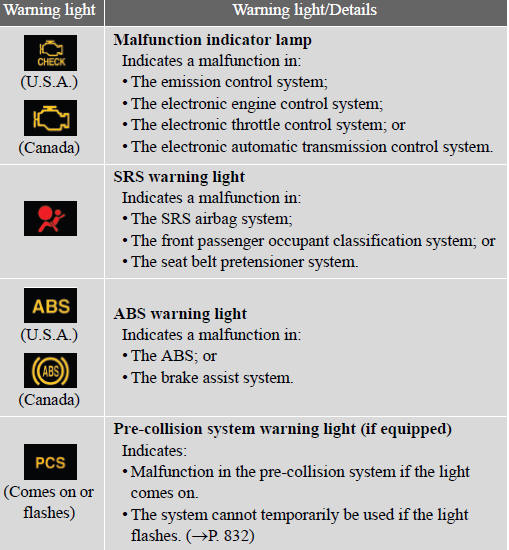

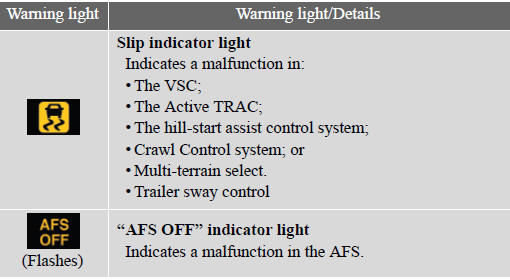

The following warning indicates the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Lexus dealer.Have the vehicle inspected immediately.

Have the vehicle inspected immediately.

Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident.

Have the vehicle inspected by your Lexus dealer, immediately.

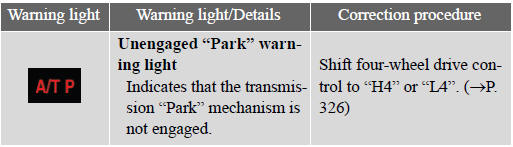

Follow the correction procedures.

Follow the correction procedures.

After taking the specified steps to correct the suspected problem, check that the warning light turns off.

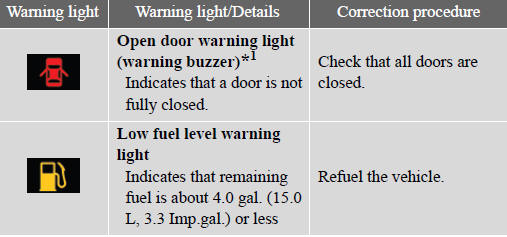

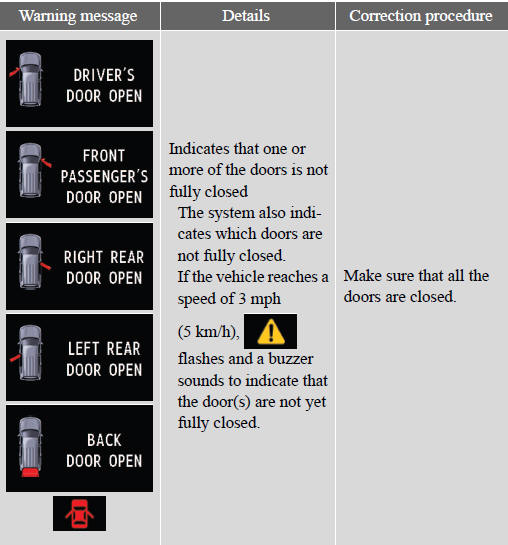

*1:Open door warning buzzer:

*1:Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).

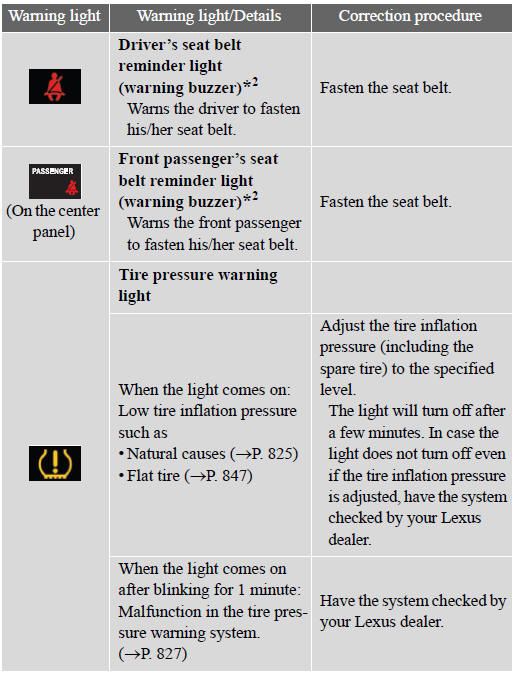

*2:Driver’s and front passenger’s seat belt reminders:
The driver’s and front passenger’s seat belts reminder sounds to alert the driver and front passenger that his/her seat belt is not fastened. The buzzer sounds intermittently for 10 seconds after the vehicle has reached a speed of at least 12 mph (20 km/h). Then, if the seat belt is still unfas- tened, the buzzer will sound in a different tone for 20 more seconds.

- If the malfunction indicator lamp comes on while driving
First check the following:
l Is the fuel empty?
If it is, fill the fuel tank immediately.
l Is the fuel tank cap loose?
If it is, tighten it securely.
The malfunction indicator lamp will go off after taking several driving trips.

If the malfunction indicator lamp does not go off even after several trips, contact your Lexus dealer as soon as possible.

- If the low speed four-wheel drive indicator light or the center differential lock indicator light blinks
Take the specified steps. If the brake system warning light or the malfunction indicator light also comes on, or the low speed four-wheel drive indicator light or the center dif- ferential lock indicator light continues to blink after taking the specified steps, there may be a malfunction in the engine, the brake system or the four-wheel drive system. In this case, you may not be able to transfer between “H4” and “L4” modes, and the center differential lock may not be able to be locked or unlocked. Have the vehicle inspected by your Lexus dealer, immediately.

- Front passenger detection sensor and passenger seat belt reminder
l If luggage is placed on the front passenger seat, the front passenger detection sensor may cause the warning light to flash, even if a passen- ger is not sitting in the seat.
l If a cushion is placed on the seat, the sensor may not detect a passenger, and the warning light may not operate properly.

- SRS warning light
This warning light system monitors the following: l The airbag sensor assembly
l Front impact sensors
l Side impact sensors (rear)
l Side impact sensors (front door)
l Safing sensor (rear)
l The driver’s seat belt buckle switch
l The driver’s seat position sensor
l Front passenger’s seat belt buckle switch
l The airbags
l The interconnecting wiring and power sources
l The front passenger occupant classification system
l “AIR BAG ON” and “AIR BAG OFF” indicator lights
l The seatbelt pretensioners
l The “RSCA OFF” indicator light

- Changing the engine oil
Make sure to reset oil change system - When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire pressure warning reset switch does not turn off the tire pressure warning light.

- The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air leaks or tire inflation pressure changes caused by temperature. In this case, adjusting the tire inflation pressure will turn off the warning light (after a few minutes).

- When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter. The tire pressure warning light will turn on if the tire inflation pressure of the spare tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire, the tire pressure warning light does not turn off.

Replace the spare tire with the repaired tire and adjust the proper tire infla- tion pressure. The tire pressure warning light will turn off after a few min- utes.

- If the tire pressure warning system is inoperative
The tire pressure warning system will become inoperative in the following conditions: (When the condition becomes normal, the system will work properly.) l If tires not equipped with tire pressure warning valves and transmitters are used.
l If the ID code on the tire pressure warning valves and transmitters is not registered in the tire pressure warning computer.
l If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.

The tire pressure warning system may be disabled in the following condi- tions: (When the condition becomes normal, the system will work properly.) l If electronic devices or facilities using similar radio wave frequencies are nearby.
l If a radio set at similar frequencies is in use in the vehicle.
l If a window tint that affects the radio wave signals is installed.
l If there is a lot of snow or ice on the vehicle, in particular around the wheels or wheel housings.
l If non-genuine Lexus wheels are used. (Even if you use Lexus wheels, the tire pressure warning system may not work properly with some types of tires.)
l If tire chains are used.
l If the spare tire is in a location subject to poor radio wave signal recep- tion.
l If a large metallic object which can interfere with signal reception is put in the luggage compartment.

- If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have it checked by Lexus dealer.

CAUTION

- If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of vehicle control and result in death or serious injury.

l Stop your vehicle in a safe place as soon as possible. Adjust the tire infla- tion pressure immediately.

l If the tire pressure warning light comes on even after tire inflation pres- sure adjustment, it is probable that you have a flat tire. Check the tires. If the tire is flat, change to the spare tire and have the flat tire repaired by the nearest Lexus dealer.

l Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes.

- If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

CAUTION

- Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label). (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label [tire and load information label], you should determine the proper tire inflation pres- sure for those tires.) As an added safety feature, your vehicle has been equipped with a tire pres- sure monitoring system (TPMS-tire pressure warning system) that illumi- nates a low tire pressure telltale (tire pressure warning light) when one or more of your tires is significantly under-inflated. Accordingly, when the low tire pressure telltale (tire pressure warning light) illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also reduces fuel effi- ciency and tire tread life, and may affect the vehicle’s handling and stopping ability.

Please note that the TPMS (tire pressure warning system) is not a substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trig- ger illumination of the TPMS low tire pressure telltale (tire pressure warn- ing light).

CAUTION

Your vehicle has also been equipped with a TPMS (tire pressure warning system) malfunction indicator to indicate when the system is not operating properly. The TPMS (tire pressure warning system) malfunction indicator is combined with the low tire pressure telltale (tire pressure warning light).

When the system detects a malfunction, the telltale will flash for approxi- mately one minute and then remain continuously illuminated. This sequence will continue upon subsequent vehicle start-ups as long as the malfunction exists. When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended.

TPMS (tire pressure warning system) malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS (tire pressure warning system) from functioning properly. Always check the TPMS (tire pressure warning system) malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS (tire pressure warning system) to continue to function properly.

NOTICE

- Precaution when installing a different tire
A tire of a different specification or maker may cause the tire pressure warn- ing system to not operate properly.

The multi-information display shows warnings of system malfunc- tions, incorrectly performed operations, or shows messages that indi- cate a need for maintenance.

If a warning is shown on the instrument cluster, stay calm and perform the following actions:

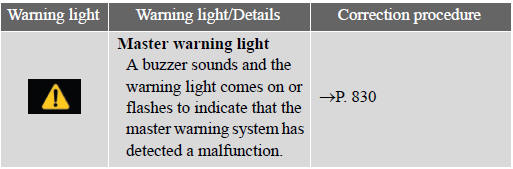

1 Master warning light

1 Master warning light
The master warning light also comes on or flashes in order to indicate that a message is currently being displayed on the multi-information dis- play.

2 Multi-information display

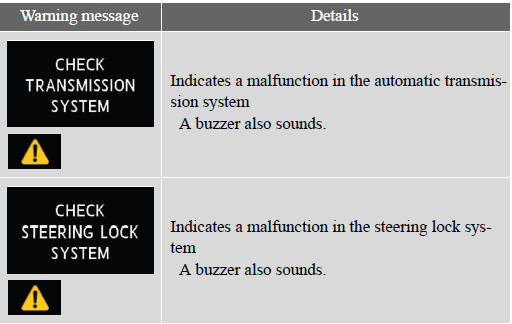

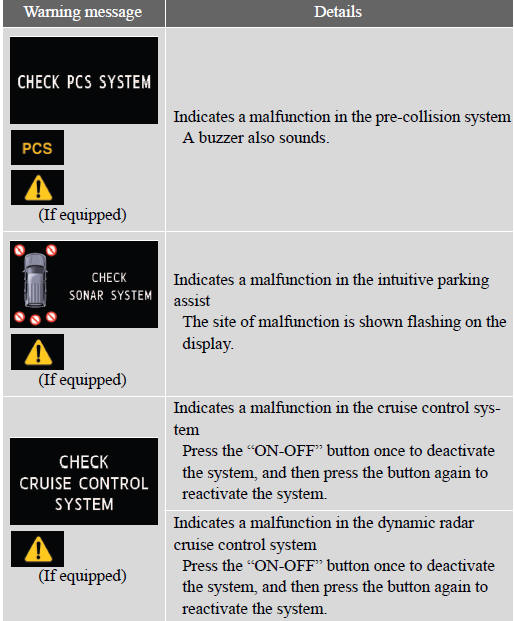

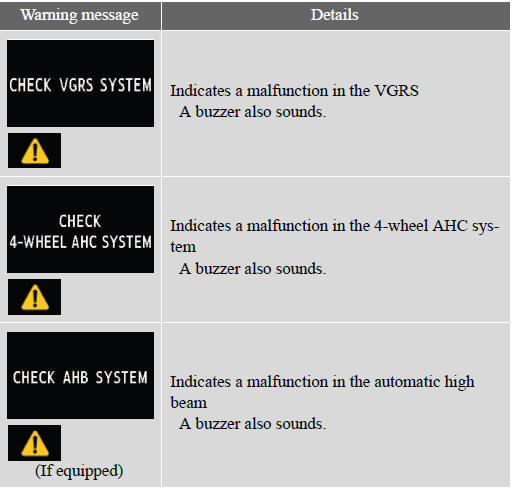

If any of the warning lights comes on again after the following actions have been performed, contact your Lexus dealer.

Have the vehicle inspected by your Lexus dealer immediately.

Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident.

Have the vehicle inspected by your Lexus dealer immediately.

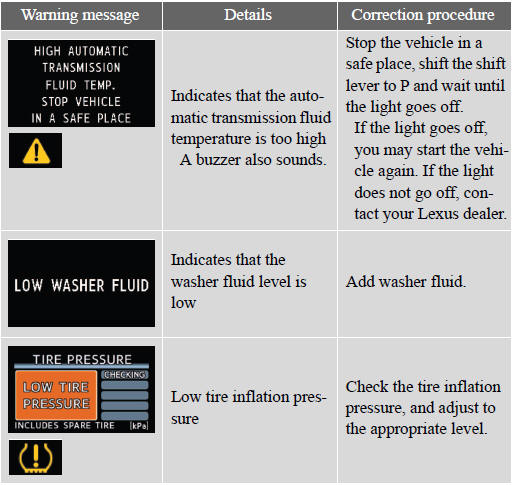

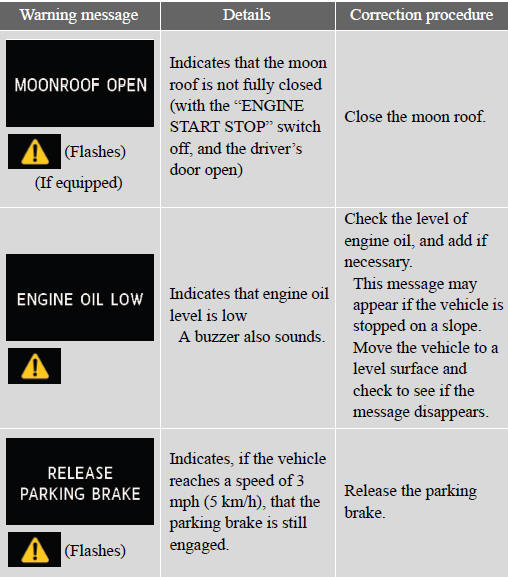

Follow the correction procedures.

Follow the correction procedures.

After taking the specified steps to correct the suspected problem, check that the warning message goes off.

*:Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Man-

*:Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Man- ual Supplement” for the maintenance interval applicable to your vehicle.

Have the malfunction repaired immediately.

Have the malfunction repaired immediately.

After taking the specified steps to correct the suspected problem, check that the warning message and light go off.

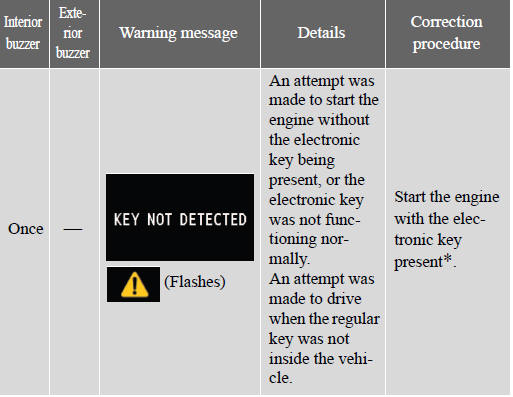

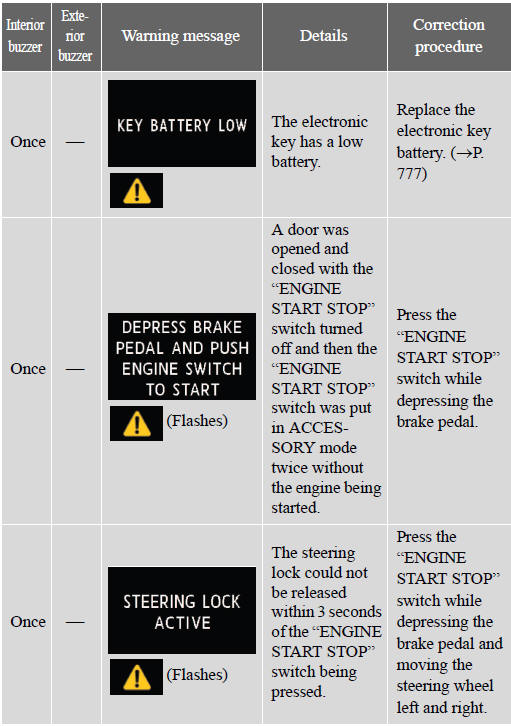

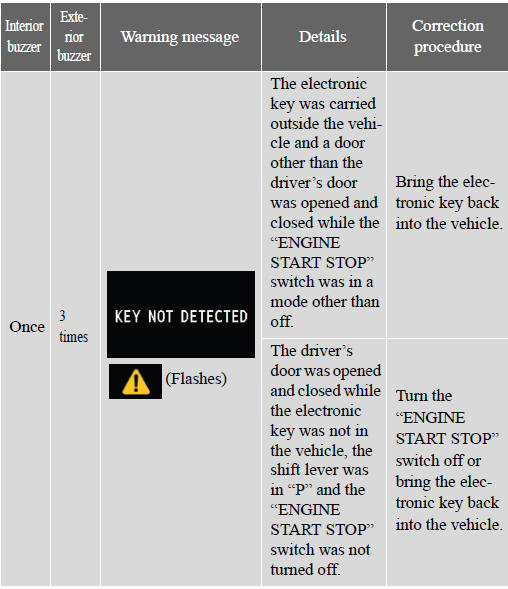

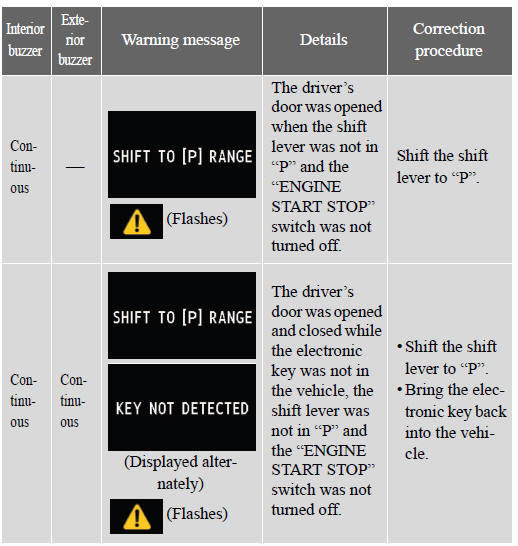

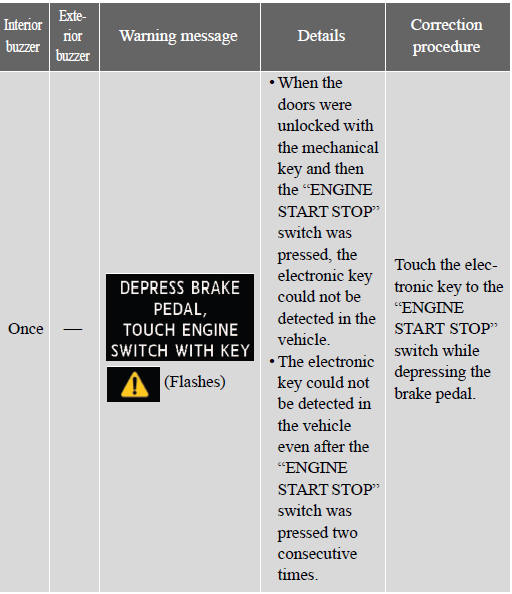

*: If the engine does not start when the electronic key is inside the

*: If the engine does not start when the electronic key is inside the vehicle, the electronic key battery may be depleted or there may be difficulty receiving signal from the key.

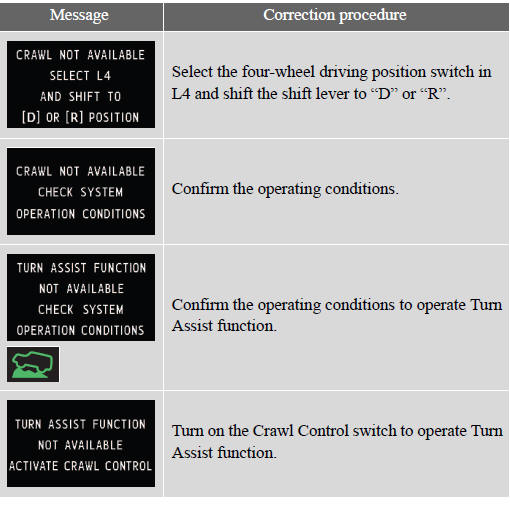

Other messages

Other messages

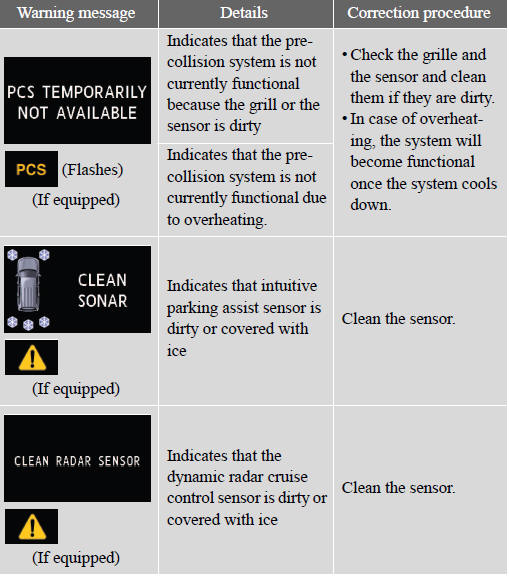

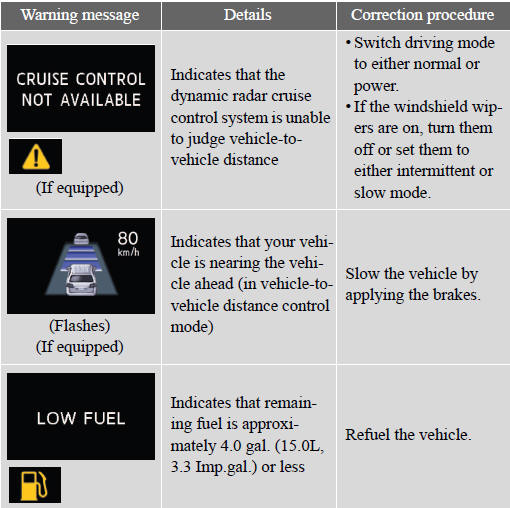

If the following message is displayed, take appropriate action and confirm that the message has disappeared.

- Resetting the tire pressure warning data

- Resetting the tire pressure warning data
After adjusting the tire inflation pressure, be sure to initialize the data.- If the message remains on, the system may have malfunctioned. Have the vehicle inspected by your Lexus dealer as soon as possible.

- Warning message in vehicle-to-vehicle distance control mode of the dynamic radar cruise control (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-vehicle distance decreases: l When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle ahead is traveling more quickly than your vehicle
l When the vehicle ahead is traveling at a very low speed
l Immediately after cruise control speed is set
l At the instant the accelerator pedal is depressed

Remove the flat tire and replace it with the spare provided.

- Before jacking up the vehicle
l Stop the vehicle on a hard, flat surface.
l Set the parking brake.
l Shift the shift lever to “P”.
l Turn off the 4-Wheel AHC.
l Stop the engine.
l Turn on the emergency flashers.

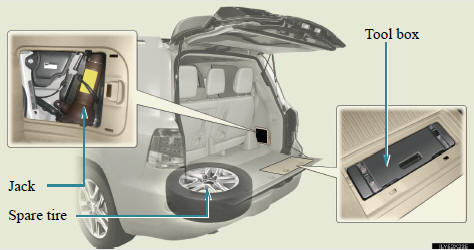

- Location of the spare tire, jack and tools

Taking out the jack

Taking out the jack

Remove the cover.

Remove the cover.

1 Loosen

1 Loosen
2 Tighten

Loosen and remove the jack.

Taking out the tool box

Remove the cover.

Remove the cover.

Take out the tool box.

Take out the tool box.

Taking out the spare tire

Assembling the jack handle.

Remove the jack handle and the jack extension bar from the tool box and assemble by following these steps.

1 Loosen the screw using a

1 Loosen the screw using a screwdriver.

2 Assemble the jack handle

2 Assemble the jack handle and the jack handle extension bar and tighten the screw.

Check that the screw is firmly tightened.

Open the cover.

Open the cover.

Insert the jack handle extension

Insert the jack handle extension into the lowering screw.

1 Lower
2 Raise

Place a rag under the jack han- dle extension to protect the back door.

Lower the spare tire completely

Lower the spare tire completely to the ground.

Pull out the spare tire and

Pull out the spare tire and remove the holding bracket.

Replacing a flat tire

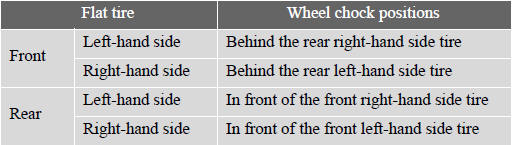

Chock the tires.

Chock the tires.

Pry off the wheel ornament,

Pry off the wheel ornament, using the beveled end of the wheel ornament remover as shown.

Slightly loosen the wheel nuts

Slightly loosen the wheel nuts (one turn).

(one turn).Slightly loosen the wheel nuts (one turn).

1 Loosen the bolts and the

1 Loosen the bolts and the screw using either the jack handle or a screwdriver.

2 Assemble the jack handle

2 Assemble the jack handle extension bar and the jack handle bar and tighten the bolts.

Check that the bolts are firmly tightened.

3 Assemble the jack handle

3 Assemble the jack handle extension bar and the jack handle and tighten the screw.

Check that the screw is firmly tightened.

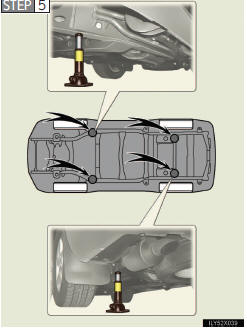

Position the jack at the jack

Position the jack at the jack points as shown.

Front - Under the chassis frame side rail
Rear - Under the rear axle hous- ing

Raise the vehicle until the tire is

Raise the vehicle until the tire is slightly raised off the ground.

Remove all the wheel nuts and

Remove all the wheel nuts and the tire.

When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface.

Installing the spare tire

Remove any dirt or foreign

Remove any dirt or foreign matter from the wheel contact surface.

If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, and the tire may come off the vehicle.

Install the spare tire and loosely

Install the spare tire and loosely tighten each nut by hand to approximately the same amount.

Turn the nut washers until they come into contact with the disc wheel.

Lower the vehicle.

Lower the vehicle.

Firmly tighten each nut two or

Firmly tighten each nut two or three times in the order shown in the illustration.

Tightening torque:
97 ft•lbf (131 N•m, 13.4 kgf•m)

Reinstall the wheel ornament.

Reinstall the wheel ornament.

Stowing the flat/spare tire, jack and tools

Lay down the tire with the outer

Lay down the tire with the outer side facing up, and install the holding bracket.

Stow the tools and jack securely,Raise the tire.

and replace all coversStow the tools and jack securely, and replace all covers

- After completing the tire change
The tire pressure warning system must be reset.

CAUTION

- Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the vehicle suddenly falling off the jack.

l Do not use the tire jack for any purpose other than replacing tires or installing and removing tire chains.

l Only use the tire jack that comes with this vehicle for replacing a flat tire.

Do not use it on other vehicles, and do not use other tire jacks for replac- ing tires on this vehicle.

l Always check that the tire jack is securely set to the jack point.

l Be sure to turn off the 4-Wheel AHC and stop the engine.

l Do not put any part of your body under the vehicle supported by a jack.

l Do not start or run the engine while your vehicle is supported by the jack.

l Do not raise the vehicle while someone is in it.

l When raising the vehicle, do not put an object on or under the jack.

l Do not raise the vehicle to a height greater than that required to replace the tire.

l Use a jack stand if it is necessary to get under the vehicle.

Take particular care when lowering the vehicle to ensure that no one work- ing on or near the vehicle will be injured.

- Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver, to prevent the extension parts from coming apart unexpectedly.

CAUTION

- Replacing a flat tire
l Observe the following precautions.
Failure to do so may result in serious injury: • Lower the spare tire completely to the ground before removing it from under the vehicle.

• Do not try to remove the wheel ornament by hand. Take due care in handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immedi- ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around the brakes will be extremely hot. Touching these areas with hands, feet or other body parts while changing a tire, etc. may result in burns.

• Turn off the vehicle height control.

The vehicle height may change due to the automatic leveling function and you may catch part of your body in the vehicle, resulting in an accident.

l Failure to follow these precautions could cause the wheel nuts to loosen and the tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.

Oil and grease may cause the wheel nuts to be excessively tightened, leading to bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts to loosen and the wheel may fall off, causing a serious accident. Remove any oil or grease from the wheel bolts or wheel nuts.

• Have the wheel nuts tightened with a torque wrench to 97 ft•lbf (131 N•m, 13.4 kgf•m) as soon as possible after changing wheels.

• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer.

• Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while the vehicle is moving.

CAUTION

- Replacing a flat tire for vehicles with power back door
In cases such as when replacing tires, make sure to turn off the power back door main switch . Failure to do so may cause the back door to operate unintentionally if the power back door switch is accidentally touched, resulting in hands and fingers being caught and injured.

NOTICE

- Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair.

- When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle under- body.

- When replacing the tires
l When removing or fitting the wheels, tires or the tire pressure warning valve and transmitter, contact your Lexus dealer as the tire pressure warn- ing valve and transmitter may be damaged if not handled correctly.

l Replace the grommets for the tire pressure warning valves and transmit- ters as well.

- To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Lexus dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replac- ing the tire.

If the engine still does not start after following the correct starting pro- cedure  or releasing the steering lock, confirm the following points.

- The engine will not start even when the starter motor operates normally
One of the following may be the cause of the problem.

l There may not be sufficient fuel in the vehicle’s tank.

Refuel the vehicle.

l The engine may be flooded.

Try to restart the engine once more following correct start- ing procedures. l There may be a malfunction in the engine immobilizer sys- tem.

- The starter motor turns over slowly, the interior lights and headlights are dim, or the horn does not sound or sounds at a low volume
One of the following may be the cause of the problem.

l The battery may be discharged.

l The battery terminal connections may be loose or corroded.

- The starter motor does not turn over
The engine starting system may be malfunctioning due to an electrical problem such as an open circuit or a blown fuse.

- The starter motor does not turn over, the interior lights and headlights do not turn on, or the horn does not sound
One of the following may be the cause of the problem.

l One or both of the battery terminals may be disconnected.

l The battery may be discharged.

l There may be a malfunction in the steering lock system.

Contact your Lexus dealer, if the problem cannot be repaired, or if repair procedures are unknown.

Emergency start function

When the engine does not start, the following steps can be used as an interim measure to start the engine if the “ENGINE START STOP” switch is functioning normally.

Put the shift lever in “P”.Set the parking brake.

Set the “ENGINE START STOP”Put the shift lever in “P”.

switch to the ACCES-Set the “ENGINE START STOP” switch to the ACCES- SORY mode.

STOP” switch aboutPush and hold the “ENGINE START STOP” switch about 15 seconds while depressing the brake pedal firmly.

Even if the engine can be started using the above steps, the system may be malfunctioning. Have the vehicle checked by your Lexus dealer.

    See also:

    Touch screen
    By touching the screen with your finger, you can control the audio system and air conditioning system, and adjust the screen display etc. Initial screen If the “ENGINE START STOP” switch ...

    Original equipment tire manufacturers
    Dunlop Tires 11 44 East Market Street Akron, OH 44316 (800) 321-2136 Michelin North America One Park Way South P.O. Box 19001 Greenville, SC 29602 (800)847-3435 ...

    Operating the system using voice commands
    By following voice guidance instructions output from the speaker, voice commands enable to the operation of the Bluetooth® audio system with- out the need to check the display or operate the “T ...
