Maintenance data (fuel, oil level, etc.)

Lexus LX / Lexus LX Owners Manuals / Vehicle specifications / Specifications / Maintenance data (fuel, oil level, etc.)

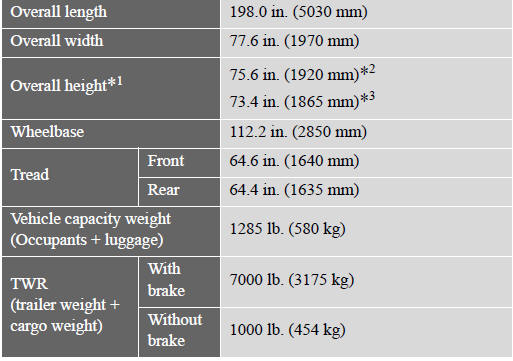

*1: Unladen vehicles

*1: Unladen vehicles
*2: Vehicles with roof luggage carrier
*3: Vehicles without roof luggage carrier

Vehicle identification

- Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehi- cle.

This number is stamped on the

This number is stamped on the top left of the instrument panel.

This number is also on the Cer-

This number is also on the Cer- tification Label.

- Engine number

The engine number is stamped

The engine number is stamped on the engine block as shown.

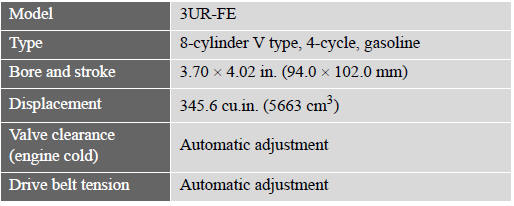

Engine

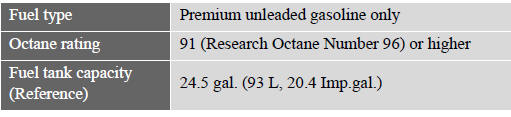

Fuel

Fuel

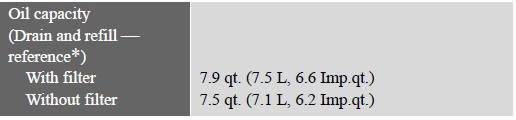

Lubrication system

Lubrication system

*: The engine oil capacity is a reference quantity to be used when changing

*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 min- utes, and check the oil level on the dipstick.

- Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to sat- isfy the following grade and viscosity.

Oil grade: ILSAC GF-5 multigrade engine oil

Recommended viscosity: SAE 0W-20

SAE 0W-20 is the best choice

SAE 0W-20 is the best choice for good fuel economy and good starting in cold weather.

If SAE 0W-20 is not available, SAE 5W-20 oil may be used.

However, it must be replaced with SAE 0W-20 at the next oil change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher value) may be better suited if the vehicle is oper- ated at high speeds, or under extreme load conditions.

How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Committee) Certification Mark is added to some oil containers to help you select the oil you should use.

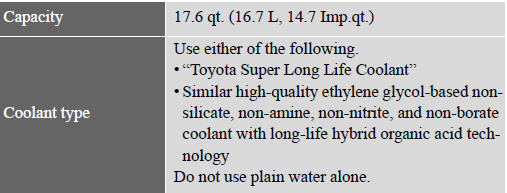

Cooling system

Cooling system

Ignition system

Ignition system

NOTICE

NOTICE

- Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

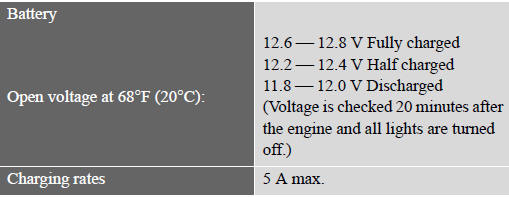

Electrical system

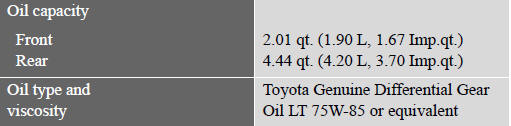

Differential

Differential

Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at

Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva- lent of matching quality to satisfy the above specification. Please contact your Lexus dealer for further details.

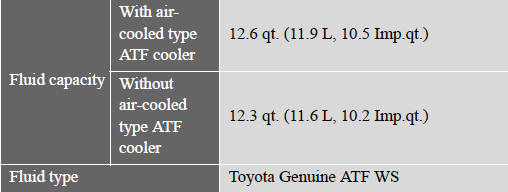

Automatic transmission

The fluid capacity is the quantity of reference. If replacement is necessary,

The fluid capacity is the quantity of reference. If replacement is necessary, contact your Lexus dealer.

NOTICE

- Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle.

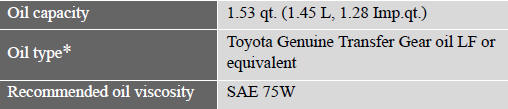

Transfer

*:Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF”

*:Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the factory. Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of matching quality to satisfy the above specifica- tion. Please contact your Lexus dealer for further details.

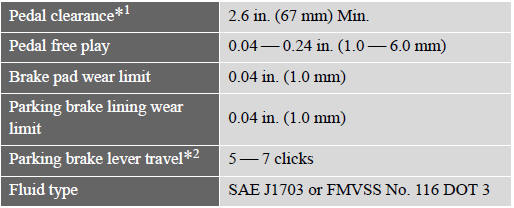

Brakes

*1: Minimum pedal clearance from Tibia-pad when depressed with a force

*1: Minimum pedal clearance from Tibia-pad when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N, 20.4 kgf)

Chassis lubrication

Steering

Steering

Suspension

Suspension

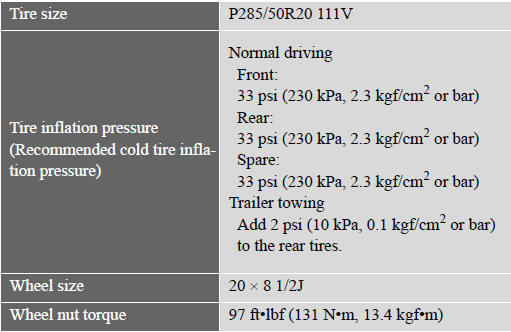

Tires and wheels

Tires and wheels

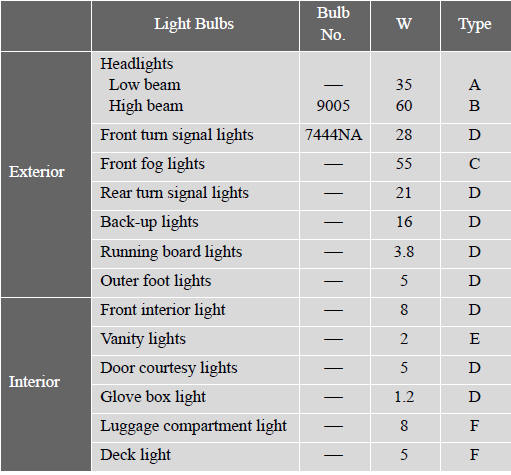

Light bulbs

Light bulbs

A: D4S high-intensity discharge

A: D4S high-intensity discharge
B: HB3 halogen bulbs
C: H11 halogen bulbs
D: Wedge base bulbs
E: Single end bulbs
F: Double end bulbs
