Setting route

DETOUR SETTING

While the route guidance is operating, the route can be changed to detour around a section of the route where a delay is caused by road repairs, or an ac- cident, etc.

1 Touch “Route”.

2 Touch “Detour”.

2 Touch “Detour”.

3 Touch a screen button to select the de-

3 Touch a screen button to select the de- sired detour distance.

“1 mile (km)”, “3 miles (km)” or “5 miles

“1 mile (km)”, “3 miles (km)” or “5 miles (km)”: Touch one of these screen buttons to start the detour process. After detouring, the system returns to the original guidance route.
“Whole Route”: Touch to make the system calculate an entire new route to the destina- tion.
“Around Traffic”: Touch to make the system search for the route based on the traffic congestion information received from XM NavTraffic®. For details,

INFORMATION

● This picture shows an example of how the

● This picture shows an example of how the system would guide around a delay caused by a traffic jam.

1 This position indicates the location of a traffic jam caused by road repairs, an ac- cident, etc.

2 This route indicates the detour suggest- ed by the system.

● When the vehicle is on a freeway, the detour distance selections are 5, 15 and 25 miles (or 5, 15 and 25 km if units are in km).

● The system may not be able to calculate a detour route depending on the selected distance and surrounding road condi- tions.

ROUTE OVERVIEW

1 Touch “Route”.

2 Touch “Overview”.

2 Touch “Overview”.

3 The entire route from the current posi-

3 The entire route from the current posi- tion to the destination is displayed.

TURN LIST

TURN LIST

1 Touch to skip to the next page or of the list of roads. Touch and holdto skip to the next page of the list of roads. Touch and hold to scroll through the list of or roads. to scroll through the list of roads.

: This mark indicates the

direction in which: This mark indicates the direction in which you should turn at the intersection.

“Map”: The selected point is displayed on the map screen.

INFORMATION

INFORMATION

● However, not all road names in the route may appear on the list. If a road changes its name without requiring a turn (such as on a street that runs through 2 or more cities), the name change will not appear on the list. The street names will be dis- played in order from the starting point, along with the distance to the next turn.

ROUTE PREFERENCE

TO SELECT ROUTE TYPE

The Preferred, Short or Alternative route can be selected.

1 Touch “Route”.

2 Touch “Preferences”.

2 Touch “Preferences”.

3 Touch “Preferred”, “Short” or “Alternate”

3 Touch “Preferred”, “Short” or “Alternate” and touch “OK”.

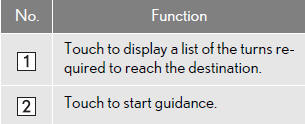

4 The entire route from the starting point

4 The entire route from the starting point to the destination is displayed.

“OK”: Touch to start guidance.

“OK”: Touch to start guidance.

“Edit Route”: Touch to change a route.

TO SELECT ROUTE FEATURES

A number of choices are available when setting the conditions the system uses to determine the route to the destination.

1 Touch “Route”.

2 Touch “Preferences” to display condi-

2 Touch “Preferences” to display condi- tions that can be selected when the sys- tem determines the route to the destination.

3 Select the desired route preference by

3 Select the desired route preference by touching the screen button.

•The system will avoid using routes that

The system will avoid using routes that include items whose indicators are off.

4 After selecting the desired route prefer- ence, touch “OK”.

STARTING ROUTE FROM ADJACENT ROAD

The route guidance can be started from an adjacent road.

(e.g. When route guidance is set on the freeway, but the vehicle is driven parallel along the freeway.)

1 Touch “Route”.

2 Touch “Preferences”.

2 Touch “Preferences”.

3 Touch “Start from Adjacent Road”.

3 Touch “Start from Adjacent Road”.

INFORMATION

INFORMATION

● When there is no adjacent road, this screen button will not be displayed.

PAUSING AND RESUMING GUIDANCE

TO PAUSE GUIDANCE

1 Touch “Route”.

2 Touch “Pause Guidance”.

2 Touch “Pause Guidance”.

• The screen will return to the current

The screen will return to the current posi- tion map without route guidance.

INFORMATION

● Without route guidance, “Pause Guidance” cannot be used.

TO RESUME GUIDANCE

1 Touch “Route”.

2 Touch “Resume Guidance”.

2 Touch “Resume Guidance”.

● The map screen, with the current position

● The map screen, with the current position displayed, will be returned to.

SHOW ON MAP

DISPLAY POI ICONS

POI icons such as gas stations and res- taurants can be displayed on the map screen. Their location can also be set as a destination and used for route guid- ance.

1 Touch “Show on Map”.

2 Touch “Select POI” to display a partic-

2 Touch “Select POI” to display a partic- ular type of POI icon on the screen.

● When the POI icons to be displayed on the

● When the POI icons to be displayed on the map screen have already been set, “Change POI” is displayed.

● A screen with a limited choice of Points of

● A screen with a limited choice of Points of Interest will be displayed.

SELECTING POI ICONS TO BE DISPLAYED

Up to 5 categories of icons can be dis- played on the map screen.

1 Touch the desired Point of Interest cate- gory to display POI location icons on the map screen.

●By touching the desired POI category and

●By touching the desired POI category and then touching “OK”, the selected POI icons are displayed on the map screen.
●To turn off the Points of Interest icons on the map screen, touch “Clear”.

“Other POIs”: Touch to display other Points of Interest categories if the desired Points of Interest cannot be found on the limited choice screen.

“Find Local POI”: Touch to search for the nearest POIs. Then select one of the cate- gories. The system will list the points within 200 miles (320 km).

2 Touch “Other POIs” on the “Select POI Icons” screen.

●When a POI category is selected from either the limited list or the complete list, the icons of those locations will be dis- played on the map screen.

3 Touch the desired POI categories.

●The selected category’s icon will appear on

●The selected category’s icon will appear on the top left of the screen.

●By touching the desired POI category and then touching “OK”, the selected POI icons are displayed on the map screen.

● If the desired POI category is not on the screen, touch “List All Categories” to list all POI categories.

●Touch the desired POI categories from the

●Touch the desired POI categories from the list.
• The selected category icon appears on the top left of the screen.
• By touching the desired POI category and then touching “OK”, the selected POI icons are displayed on the map screen.
• To return to the POI category selection screen, touch “More”.

TO DISPLAY THE LOCAL POI LIST

Points of Interest that are within 200 miles (320 km) of the current position will be listed from among the selected categories.

1 Touch “Find Local POI”.

2 Touch the screen button of the desired

2 Touch the screen button of the desired Point of Interest.

●The selected Points of Interest are dis-

●The selected Points of Interest are dis- played on the map screen.

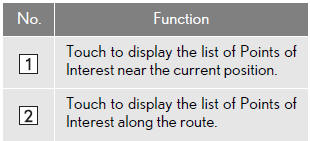

“Near...”: Touch to search for Points of In- terest near the current position or along the route.

TO SET A POI AS A

TO SET A POI AS A DESTINATION

One of the Point of Interest icons can be selected on the map screen as a destina- tion and can be used for route guidance.

1 Directly touch the desired Point of Inter- est icon to set it as a destination.

• The map will shift so that the icon is

The map will shift so that the icon is cen- tered on the screen and overlaps with the cursor distance from. At this time, the distance from the current position is displayed on the screen. The distance shown is measured as a straight line from the current position to the POI.

2 When the desired Point of Interest over- laps with the cursor, touch “Enter ”.

  The screen changes and displays the map location of the selected destination and route preference.

TO HIDE POI ICONS

1 Touch “Show on Map”.

2 Touch “POI Icons”.

2 Touch “POI Icons”.

•  The “POI Icons” indicator is

  The “POI Icons” indicator is dimmed.
  The map screen will be displayed with the POI icons hidden.
  To display the POI icons again, touch “POI Icons” on the “Show on Map” screen.

ROUTE TRACE

Up to 124 miles (200 km) of the trav- eled route can be stored and retraced on the display.

INFORMATION

● This feature is available when the map scale is more than 30 miles (50 km).

TO START RECORDING THE ROUTE TRACE

1 Touch “ Show on Map”.

2 Touch “Route Trace”.

2 Touch “Route Trace”.

● The “Route Trace” indicator is highlighted.

● The “Route Trace” indicator is highlighted.

TO STOP RECORDING THE ROUTE TRACE

1 Touch “Show on Map”.

2 Touch “Route Trace”.

2 Touch “Route Trace”.

● Touching “Yes” stops recording and the

● Touching “Yes” stops recording and the route trace remains displayed on the screen.
● Touching “No” stops recording and the route trace is erased.
