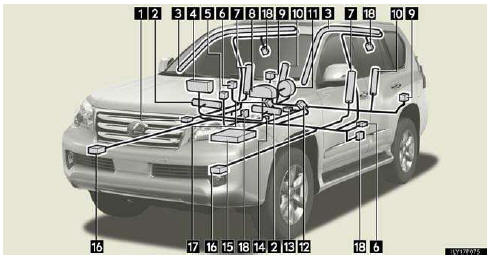

SRS airbag system components

1. Front passenger occupant classification system (ECU and sensors)

1. Front passenger occupant classification system (ECU and sensors)

2. Knee airbag

3. Curtain shield airbag

4. Front passenger airbag

5. “AIR BAG ON” and “AIR BAG OFF” indicator lights

6. Side and curtain shield airbag sensor

7. Front side airbag

8. SRS warning light and “RSCA OFF” indicator light

9. Rear side (if equipped) and curtain shield airbag sensor

10. Rear side airbag (outer second seat) (if equipped)

11. Driver airbag

12. Driver’s seat belt buckle switch

13. Floor sensor

14. “RSCA OFF” switch

15. Airbag sensor assembly

16. Front airbag sensor

17. Front passenger’s seat belt buckle switch

18.  Seat belt pretensioners

Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sen- sor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system components diagram above. This information includes crash severity and occupant informa- tion. As the airbags deploy, a chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of the occu- pants.

SRS warning light

This warning light system monitors the airbag sensor assembly, front airbag sensors, side and curtain shield airbag sensors, rear side and curtain shield airbag sensors, floor sensor, driver’s seat belt buckle switch, front passenger occupant classification system (ECU and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indica- tor light, the “RSCA OFF” indicator light, front passenger’s seat belt buckle switch, seat belt pretensioner assemblies, airbags, interconnecting wiring and power sources.

If the SRS airbags deploy (inflate)

• Bruising and slight abrasions may result from contact with a deploying (inflating) SRS airbag.

• A loud noise and white powder will be emitted.

• Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the front seats, parts of the front, center and rear pillars and roof side rail, may be hot for several minutes. The airbag itself may also be hot.

• The windshield may crack.

• For Safety Connect subscribers, if the SRS airbags deploy or in the event of a severe rear-end collision, the system is designed to send an emergency call to the response center, notifying them of the vehicle’s location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistance required. If the occupants are unable to communicate, the agent automatically treats the call as an emer- gency and helps to dispatch the necessary emergency services.

SRS airbag deployment conditions (SRS front airbags)

• The SRS front airbag will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to an approximately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).

However, this threshold velocity will be considerably higher if the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact, or if the vehicle is involved in an underride collision (e.g. a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck, etc.).

• Depending on the type of collision, it is possible that only the seat belt preten- sioners will activate.

• The SRS front airbags for the front passenger will not activate if there is no pas- senger sitting in the front passenger seat. However, the SRS front airbags for the front passenger may deploy if luggage is put in the seat, even if the seat is unoc- cupied.

SRS airbag deployment conditions (SRS side airbags and curtain shield airbags)

• The SRS side and curtain shield airbags will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to the impact force produced by an approximately 3307 lb. [1500 kg] vehicle colliding with the vehicle cabin from a direction perpendicular to the vehicle orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

• The SRS curtain shield airbags will deploy in the event of vehicle rollover.

Conditions under which the SRS airbags may deploy (inflate), other than a collision

The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.

Hitting a curb, edge of pavement or hard surface

Hitting a curb, edge of pavement or hard surface

Falling into or jumping over a deep hole

Landing hard or falling

The SRS curtain shield airbags may also deploy under the situations shown in the illustration.

The angle of vehicle tip-up is marginal.

The angle of vehicle tip-up is marginal.

The vehicle skids and hits a curb stone.

Types of collisions that may not deploy the SRS airbags (SRS front airbags)

The SRS front airbags are generally not designed to inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal colli- sion. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags may occur.

Collision from the side

Collision from the side

Collision from the rear

Vehicle rollover

Types of collisions that may not deploy the SRS airbags

(SRS side airbags and curtain shield airbags)

The SRS side airbag and curtain shield airbag system may not activate if the vehicle is subjected to a collision from the side at certain angles, or a collision to the side of the vehicle body other than the passenger compartment.

Collision from the side to the vehicle body other than the passenger compartment

Collision from the side at an angle

The SRS side airbags are not generally designed to inflate if the vehicle is

The SRS side airbags are not generally designed to inflate if the vehicle is involved in a frontal or rear collision, if it rolls over, or if it is involved in a low-speed side colli- sion.

 - Collision from the front

 - Collision from the front

 - Collision from the rear

 - Vehicle rollover

The SRS curtain shield airbags are not generally designed to inflate if the vehicle is involved in a frontal or rear collision, if it pitches end over, or if it is involved in a low- speed side collision.

 - Collision from the front

 - Collision from the front

 - Collision from the rear

 - Pitches end over end

When to contact your Lexus dealer

In the following cases, contact your Lexus dealer as soon as possible. Do not dis- connect the battery cables before contacting your Lexus dealer.

Any of the SRS airbags have been inflated.

The front of the vehicle is damaged or deformed, or was involved in an accident

The front of the vehicle is damaged or deformed, or was involved in an accident that was not severe enough to cause the SRS airbags to inflate.

A portion of the doors is damaged or deformed, or the vehicle was involved in

A portion of the doors is damaged or deformed, or the vehicle was involved in an accident that was not severe enough to cause the SRS side airbags and curtain shield airbags to inflate.

The pad section of the steering wheel, dashboard near the front passenger airbag

The pad section of the steering wheel, dashboard near the front passenger airbag or lower portion of the instrument panel is scratched, cracked, or otherwise dam- aged.

The surface of the seats with the side air- bag is scratched, cracked, or otherwise

The surface of the seats with the side air- bag is scratched, cracked, or otherwise damaged.

The portion of the front pillars, center pil- lars, rear pillars or roof side rail garnishes (padding) containing the curtain shield air- bags inside is scratched, cracked, or other- wise damaged.

CAUTION

SRS airbag precautions

Observe the following precautions regarding the SRS airbags.

Failure to do so may cause death or serious injury.

• The driver and all passengers in the vehicle must wear their seat belts properly.

The SRS airbags are supplemental devices to be used with the seat belts.

• The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag. The National Highway Traffic Safety Administration (NHTSA) advises:

Since the risk zone for driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of inflation, placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can change your driving position in several ways:

• Move your seat to the rear as far as you can while still reaching the pedals comfortably.

• Slightly recline the back of the seat.

Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm) distance, even with the driver seat all the way forward, simply by reclining the back of the seat somewhat. If reclining the back of your seat makes it hard to see the road, raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the airbag toward your chest instead of your head and neck.

The seat should be adjusted as recommended by NHTSA above, while still main- taining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

CAUTION

SRS airbag precautions

• If the seat belt extender has been con- nected to the front seat belt buckles

• If the seat belt extender has been con- nected to the front seat belt buckles but the seat belt extender has not also been fas- tened to the latch plate of the seat belt, the SRS front airbags system will judge that the driver and front passenger are wearing the seat belt even though the seat belt has not been connected. In this case, the SRS front airbags may not activate correctly in a colli- sion, resulting in death or serious injury in the event of collision. Be sure to wear the seat belt with the seat belt extender.

The SRS front passenger airbag also deploys with considerable force, and can cause death or serious injury especially if the front passenger is very close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback adjusted, so the front passenger sits upright.

Improperly seated and/or restrained infants and children can be killed or seri- ously injured by a deploying airbag. An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are safer for infants and children than the front passenger seat.

CAUTION

SRS airbag precautions

Do not sit on the edge of the seat or lean against the dashboard.

Do not allow a child to stand in front of the SRS front passenger airbag unit

Do not allow a child to stand in front of the SRS front passenger airbag unit or sit on the knees of a front passenger.

Do not allow the front seat occupants to hold items on their knees.

Do not lean against the door, the roof side rail or the front, center and rear

Do not lean against the door, the roof side rail or the front, center and rear pillars.

SRS airbag precautions

SRS airbag precautions

Do not allow anyone to kneel on the pas- senger seat toward the door or put their head or hands outside the vehicle.

Do not attach anything to or lean anything against areas such as the dashboard,

Do not attach anything to or lean anything against areas such as the dashboard, steer- ing wheel pad and lower portion of the instrument panel.

These items can become projectiles when the SRS driver, front passenger and knee airbags deploy

Do not attach anything to areas such as the door, windshield glass, side door

Do not attach anything to areas such as the door, windshield glass, side door glass, front, center or rear pillars, roof side rail and assist grip.

Do not hang coat hangers or other hard objects on the coat hooks. All of these items could become projectiles and may cause death or serious injury, should the SRS curtain shield airbag deploy.

CAUTION

CAUTION

SRS airbag precautions

• If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to remove it.

• Do not use seat accessories which cover the parts where the SRS side airbags inflate as they may interfere with inflation of the airbags. Such accessories may prevent the side airbags from activating correctly, disable the system or cause the side airbags to inflate accidentally, resulting in death or serious injury.

• Do not strike or apply significant levels of force to the area of the SRS airbag components.

Doing so can cause the SRS airbags to malfunction.

• Do not touch any of the component parts immediately after the SRS airbags have deployed (inflated) as they may be hot.

• If breathing becomes difficult after the SRS airbags have deployed, open a door or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any residue as soon as possible to prevent skin irritation.

• If the areas where the SRS airbags are stored, such as the steering wheel pad and front, center and rear pillar garnishes, are damaged or cracked, have them replaced by your Lexus dealer.

CAUTION

Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications with- out consulting your Lexus dealer. The SRS airbag may malfunction or deploy (inflate) accidentally, causing death or serious injury.

• Installation, removal, disassembly and repair of the SRS airbags

• Repairs, modifications, removal or replacement of the steering wheel, instrument panel, dashboard, seats or seat upholstery, front, center and rear pillars or roof side rail

• Repairs or modifications of the front fender, front bumper, or side of the occupant compartment

• Installation of snow plows, winches, etc. to the front grille (bull bars or kangaroo bar etc.)

• Modifications to the vehicle’s suspension system

• Installation of electronic devices such as mobile two-way radios and CD players

• Modifications to your vehicle for a person with a physical disability
