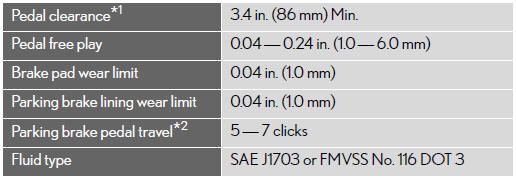

Brakes

*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50

*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50 kgf) while the engine is running.

*2: Parking brake pedal travel when depressed with a force of 44.1 lbf (196 N, 20.0 kgf).
