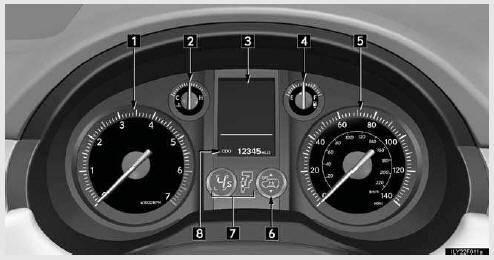

Gauges and meters
1. Tachometer
Displays the engine speed in revolutions per minute.
2. Engine coolant temperature gauge
Displays the engine coolant temperature.
3. Multi-information display
4. Fuel gauge
Displays the quantity of fuel remaining in the tank.
5.Speedometer
Displays the vehicle speed.
6. Rear height control air suspension display (if equipped)
7. Shift position and shift range display
8. Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different distances independently.
