Front passenger occupant classification system

Lexus GX / Lexus GX Owners Manual / Before driving / Safety information / Front passenger occupant classification system

Your vehicle is equipped with a front passenger occupant classification system.

This system detects the conditions of the front passenger seat and activates or deactivates the devices for the front passenger.

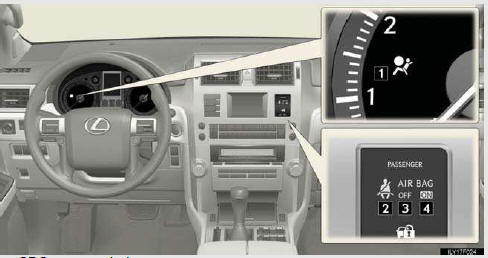

1. SRS warning light

1. SRS warning light

2. Front passenger’s seat belt reminder light

3. “AIR BAG OFF” indicator light

4. “AIR BAG ON” indicator light

Condition and operation in the front passenger occupant classification system

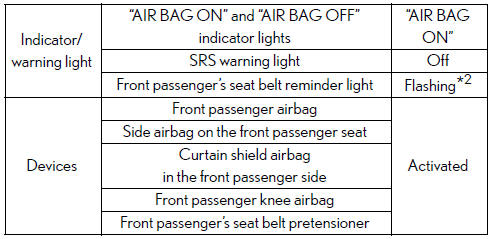

Adult*1

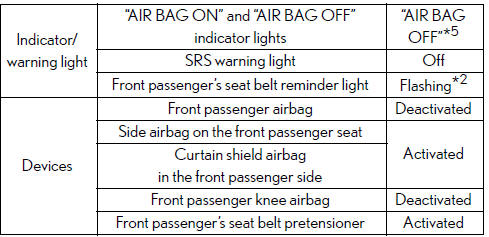

Child*3 or child restraint system*4

Child*3 or child restraint system*4

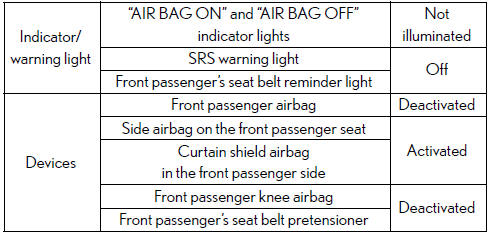

Unoccupied

Unoccupied

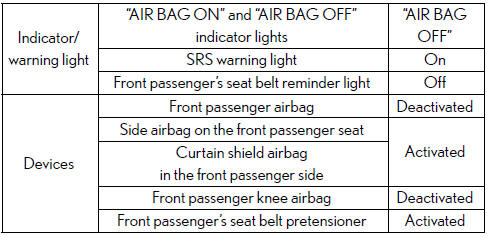

There is a malfunction in the system

There is a malfunction in the system

*1: The system judges a person of adult size as an adult. When a smaller adult

*1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/ her as a child depending on his/her physique and posture.

*2: In the event the front passenger does not wear a seat belt.

*3: When a large child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending on his/her physique and posture.

*4: Never install a rear-facing child restraint system on the front passen- ger seat. A forward-facing child restraint system should only be installed on the front passenger seat when it is unavoidable.

*5: In case the indicator light is not illuminated, consult this manual on how to installing the child restraint system properly.

CAUTION

Front passenger occupant classification system precautions

Observe the following precautions regarding the front passenger occupant classifi- cation system.

Failure to do so may cause death or serious injury.

Wear the seat belt properly.

• Make sure the front passenger’s seat belt plate has not been left inserted into the buckle before someone sits in the front passenger seat.

CAUTION

Front passenger occupant classification system precautions

• Make sure the “AIR BAG OFF” indicator light is not illuminated when using the seat belt extender for the front passenger seat. If the “AIR BAG OFF” indicator light is illuminated, disconnect the extender tongue from the seat belt buckle, and reconnect the seat belt. Reconnect the seat belt extender after making sure the “AIR BAG ON” indicator light is illuminated. If you use the seat belt extender while the “AIR BAG OFF” indicator light is illuminated, the front passenger airbag and front passenger knee airbag may not activate correctly, which could cause death or serious injury in the event of a collision.

• Do not apply a heavy load to the front passenger seat or equipment (e.g. seat- back pocket).

• Do not put weight on the front passenger seat by putting your hands or feet on the front passenger seat seatback from the second seat.

• Do not let a second seat passenger lift the front passenger seat with their feet or press on the seatback with their legs.

• Do not put objects under the front passenger seat.

• Do not recline the front passenger seatback so far that it touches a second seat.

This may cause the “AIR BAG OFF” indicator light to be illuminated, which indi- cates that the passenger’s airbags will not deploy in the event of a severe acci- dent. If the seatback touches the second seat, return the seatback to a position where it does not touch the second seat. Keep the front passenger seatback as upright as possible when the vehicle is moving. Reclining the seatback exces- sively may lessen the effectiveness of the seat belt system.

CAUTION

Front passenger occupant classification system precautions

• If an adult sits in the front passenger seat, the “AIR BAG ON” indicator light is illu- minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up straight, well back in the seat, feet on the floor, and with the seat belt worn cor- rectly. If the “AIR BAG OFF” indicator still remain illuminated, either ask the pas- senger to move to the rear seat, or if that is not possible, move the front passenger seat fully rearward.

• When it is unavoidable to install a forward-facing child restraint system on the front passenger seat, install the child restraint system on the front passenger seat in the proper order. • Do not modify or remove the front seat.

• Do not kick the front passenger seat or subject it to severe impact. Otherwise, the SRS warning light may come on to indicate a malfunction in the detection sys- tem. In this case, contact your Lexus dealer immediately.

• Child restraint systems installed on the second seat should not contact the front seatbacks.

• Do not use a seat accessory, such as a cushion and seat cover, that covers the seat cushion surface.

• Do not modify or replace the upholstery of the front seat.
