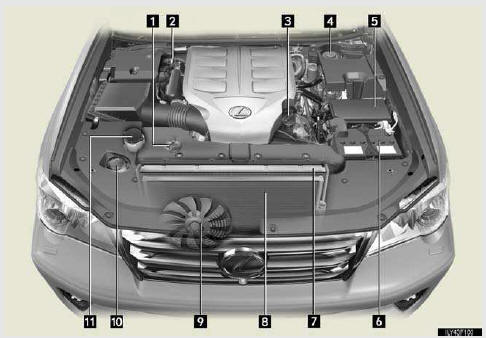

Engine compartment

1. Engine coolant reservoir
2. Engine oil level dipstick
3. Engine oil filler cap
4. Brake fluid reservoir
5. Fuse box
6. Battery
7. Radiator
8. Condenser
9. Electric cooling fan
10. Washer fluid tank
11. Power steering fluid reservoir
- Engine compartment cover
- Engine oil
- Engine coolant
- Radiator and condenser
- Brake fluid
- Power steering fluid
- Battery
- Washer fluid
