Rear seats

Second seat

1 Seatback angle adjustment

1 Seatback angle adjustment lever
2 Seat position adjustment switch

Third seat

Tumbling the second seats and third seat entry

Tumbling the second seats and third seat entry

For easy access to the third seat, perform second seats”. in “Tumbling the second seats”.

 Before tumbling the second seats

Stow the seat belt buckles and

Stow the seat belt buckles and lower the head restraints to the lowest position.

Pass the outer seat belts through

Pass the outer seat belts through the seat belt hangers and secure the seat belt plates.

This prevents the shoulder belt from being damaged.

Make sure that the seat belts are removed from the hangers before using them.

Tumbling the second seats

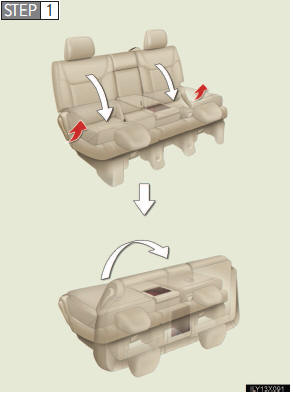

Fold down the seatback while

Fold down the seatback while pulling the seatback angle adjustment lever, and swing the whole seat up and forward.

Hook the holding strap to the

Hook the holding strap to the assist grip and secure the seat by pulling its free end.

When returning the second seat to its original position, stow the holding strap.

Remove the seat hook covers

Remove the seat hook covers from the back of the seat cush- ion, and install them on the seat hooks.

When returning the second seat to its original position, remove the seat hook covers from the floor and install them in the back of the seat cushion

If you cannot raise the left side seatback

Lift the seatback until it stops.

Lift the seatback until it stops.

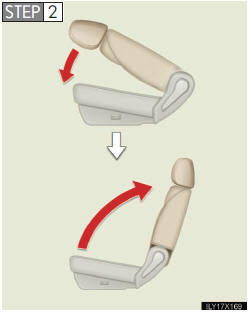

Lower the seatback a little then lift it

Lower the seatback a little then lift it again.

Folding the third seats

Before folding the third seats

Stow the seat belts buckles.

Stow the seat belts buckles.

the seatback.Stow the center head restraint in the seatback.

Pass the outer seat belts through

Pass the outer seat belts through the seat belt hangers and secure the seat belt plates.

This prevents the shoulder belt from being damaged.

Make sure that the seat belts are removed from the hangers before using them.

Stow the center seat belt tabs in the cover set in the roof.

Stow the center seat belt tabs in the cover set in the roof.

Folding down the third seatback

1 For right side

1 For right side
2 For left side

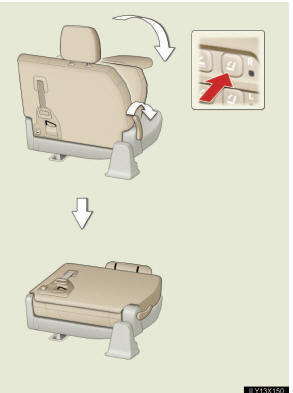

The seat will automatically fold

The seat will automatically fold when the switch is pressed.

Folding up the third seats

“Before folding the third seats”.Perform following steps in “Before folding the third seats”.

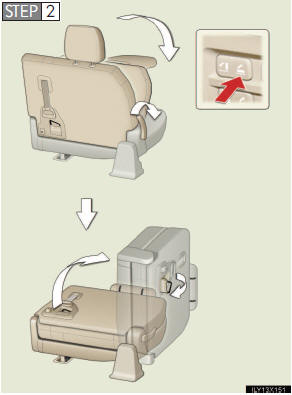

If the switch is pressed and

If the switch is pressed and held, the seat will automatically fold and lift sideward. (The buzzer sounds twice when the seat is about to lift.) If the switch is released while the seat is lifting sideward, operation will stop and a buzzer will sound continuously.

Before operating, make sure that the handle on the rear of the seatback is secure.

Remove the seat hook covers

Remove the seat hook covers from the underside of the seat cushion, and install them on the seat hooks.

Returning the third seats

Remove the seat hook covers

Remove the seat hook covers from the floor and install them into the underside of the seat cushion.

If the switch is held down the

If the switch is held down the seat will automatically return to the folding position. (Buzzer sounds twice) If the switch is released while returning to the folding posi- tion, operation will stop and a buzzer will sound continuously.

Pull the handle and raise the

Pull the handle and raise the seatbacks.

Fix the handle securely in its original position after use.

Raise the head restraints.

Raise the head restraints.

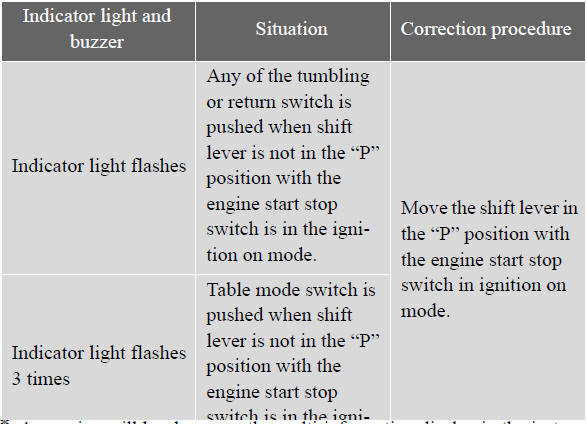

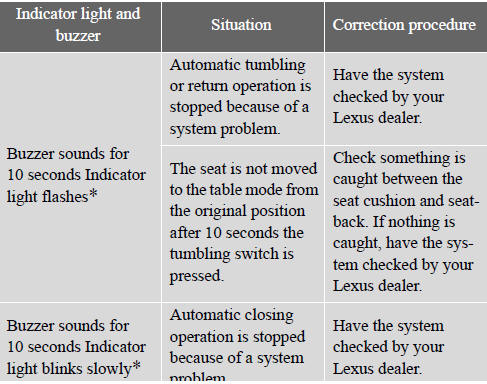

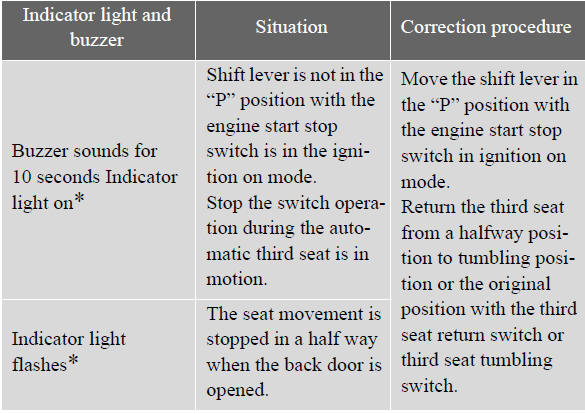

Alarms and indicators

The following table describes circumstances and correction procedures when only alarms are sound.

*: A warning will be shown on the multi-information display in the instru-

*: A warning will be shown on the multi-information display in the instru- ment cluster.

CAUTION

Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion to reduce the risk of sliding under the lap belt.

If the seat is too reclined, during an accident the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury.

When the seatback is folded
l Do not sit on or place anything on the seatback while driving.
l Be sure to install the seat hook covers on the seat hooks, or you may get burned when they become hot.

When returning the seatbacks to their original position
Observe the following precautions. Failure to do so may result in death or serious injury.

l Be careful not to get your hands or feet pinched in the seat.
l Make sure the seats are securely locked. Failure to do so will prevent the seat belt from operating properly.
l Check that the seat belts are not twisted or caught under the seat.
l Arrange the seat belts in the proper positions for ready use.

 Avoiding damage to seat components
Do not hang or attach anything on the seatback striker.

NOTICE

- Before tumbling, folding up the seats
The seat belts and buckles must be stowed.

- After returning the third seat
Make sure that the handle on the rear of the seatback has been secured.
