Operating an iPod
Connecting an iPod enables you to enjoy music from the vehicle speakers.
- Connecting an iPod
Slide the auxiliary box lid.
Open the cover and connect an iPod using an iPod cable.
Turn on the power of the iPod if it is not turned on.
Press the “AUX•USB” button.

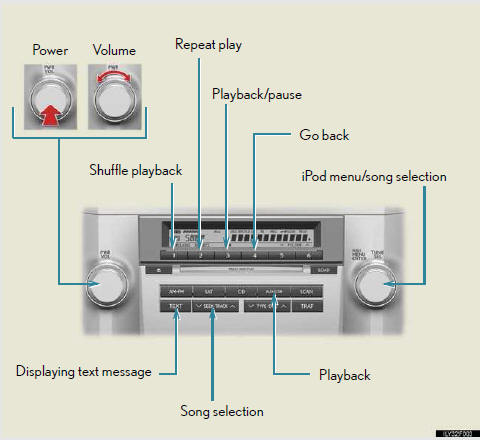

Control panel
- Selecting a play mode
- Selecting songs
- Fast-forwarding and rewinding songs
- Shuffle playback
- Repeat play
- Switching the display
- Adjusting sound quality and volume balance
