Replacing light bulbs

 - Headlight low beams (vehicles with halogen bulbs)

Turn the cover counterclockwise and remove it.

Turn the bulb base counterclock- wise.

Turn the bulb base counterclock- wise.

Unplug the connector while push- ing the lock release.

Unplug the connector while push- ing the lock release.

 - Headlight high beams and daytime running lights

 - Headlight high beams and daytime running lights

Turn the bulb base counterclock- wise.

Unplug the connector while push- ing the lock release.

Unplug the connector while push- ing the lock release.

 - Fog lights

 - Fog lights

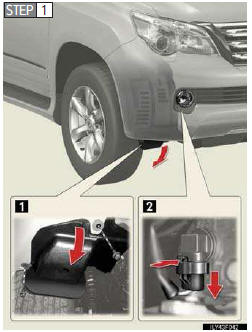

1. Remove the fender liner bolt and partly remove the fender liner.

1. Remove the fender liner bolt and partly remove the fender liner.

2. Unplug the connector while pushing the lock release.

Turn the bulb base counterclock- wise.

Turn the bulb base counterclock- wise.

 - Parking/front side marker lights

Turn the bulb base counterclock- wise.

Remove the light bulb.

Remove the light bulb.

 - Front turn signal lights

 - Front turn signal lights

Turn the bulb base counterclock- wise.

Remove the light bulb.

Remove the light bulb.

 - Rear turn signal and rear side marker lights

 - Rear turn signal and rear side marker lights

Left-hand side: Open the back door

Left-hand side:

Remove the bolts and lamp assem- bly.

Right-hand side:

Right-hand side:

Remove the bolts.

Close the back door half way and remove the lamp assembly.

Close the back door half way and remove the lamp assembly.

Unplug the connector while push- ing the lock release.

Unplug the connector while push- ing the lock release.

Turn the bulb bases counterclock- wise.

Turn the bulb bases counterclock- wise.

1. Rear turn signal light

2. Rear side marker light

Remove the light bulb.

Remove the light bulb.

1. Rear turn signal light

2. Rear side marker light

 - Back-up lights

 - Back-up lights

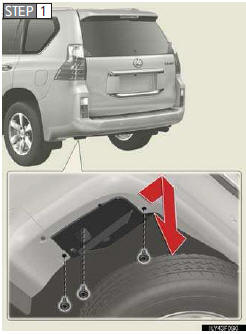

Remove the bolts and pull down the under cover.

Turn the bulb base counterclock- wise.

Turn the bulb base counterclock- wise.

Remove the light bulb.

Remove the light bulb.

 - Lights other than the above

 - Lights other than the above

If any of the lights listed below has burnt out, have it replaced by your Lexus dealer.

• Headlight low beams (high-intensity discharge bulbs)

• Side turn signal lights

• High mounted stoplight

• Stop/tail lights

• License plate light

• Outer foot light

 - High-intensity discharge (HID) headlights

If voltage to the high-intensity discharge bulbs is insufficient, the light may not come on, or may go out temporarily. The high-intensity discharge bulbs will come on when normal power is restored.

 - LED light bulbs

The side turn signal lights, tail/stop lights, license plate light and high mounted stop- light consist of a number of LEDs. If any LEDs burn out, take your vehicle to your Lexus dealer to have the light replaced.

If two or more LEDs in a stoplight burn out, your vehicle may not conform to local laws (SAE).

 - Condensation build-up on the inside of the lens

Contact your Lexus dealer for more information in the following situations. Tempo- rary condensation build-up on the inside of the headlight lens does not indicate a malfunction.

• Large drops of water are built up on the inside of the lens.

• Water has built up inside the headlight.

CAUTION

 - Replacing light bulbs

• Turn off the headlights. Do not attempt to replace the bulb immediately after turn- ing off the headlights.

The bulbs become very hot and may cause burns.

• Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by the plastic or metal portion.

If the bulb is scratched or dropped it may blow out or crack.

• Fully install light bulbs and any parts used to secure them. Failing to do so may result in heat damage, fire, or water entering the headlight unit. This may damage the headlights or cause condensation to build up on the lens.

 - High-intensity discharge (HID) headlights

• Contact your Lexus dealer before replacing high-intensity discharge headlights (including light bulbs).

• Do not touch the high-intensity discharge headlight’s high voltage socket when the headlights are turned on.

An extremely high voltage of 20000 V will be discharged and could result in death or serious injury by electric shock.

• Do not attempt to repair or disassemble light bulbs, connectors, electric circuits or component parts.

Doing so may result in serious injury due to electric shock.

 - To prevent damage or fire

• Make sure bulbs are fully seated and locked.

• Check the wattage of the bulb before installing to prevent heat damage.
