Replacing a flat tire

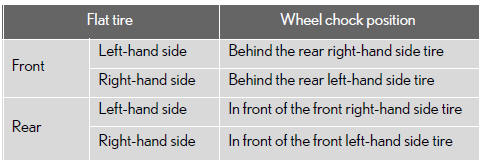

Chock the tires.

Pry off the wheel ornament, using the beveled end of the wheel orna- ment remover

Pry off the wheel ornament, using the beveled end of the wheel orna- ment remover as shown.

Slightly loosen the wheel nuts (one turn).

Slightly loosen the wheel nuts (one turn).

Remove the jack handle, jack handle extension bar and jack han- dle bar fromAssembling the jack handle.

Remove the jack handle, jack handle extension bar and jack han- dle bar from the tool box and assemble by following these steps.

1. Loosen the bolt and the screw using either the jack handle end or a screwdriver.

1. Loosen the bolt and the screw using either the jack handle end or a screwdriver.

2. Assemble the jack handle extension bar and the jack han- dle bar and tighten

2. Assemble the jack handle extension bar and the jack han- dle bar and tighten the bolts.

Check that the bolts are firmly tightened.

3. Assemble the jack handle extension bar and the jack han- dle and tighten the

3. Assemble the jack handle extension bar and the jack han- dle and tighten the screw.

Check that the screw is firmly tight- ened.

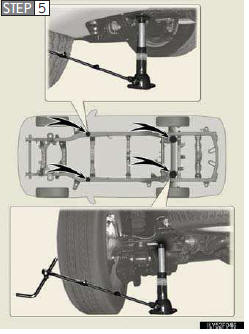

Position the jack at the jack points as shown.

Position the jack at the jack points as shown.

Front - Under the chassis frame side rail

Rear - Under the rear axle housing

Raise the vehicle until the tire is slightly raised off the ground.

Raise the vehicle until the tire is slightly raised off the ground.

Remove all the wheel nuts and the tire.

Remove all the wheel nuts and the tire.

When resting the tire on the ground, place the tire so that the wheel design faces up to avoid scratching the wheel surface.
