Checking and replacing fuses

If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary.

switch OFF.Turn the “ENGINE START STOP� switch OFF.

following places. To checkThe fuses are located in the following places. To check the fuses, follow the instructions below.

►Engine compartment

Push the tab in and lift the lid

Push the tab in and lift the lid off.

►Driver’s side instrument panel

Remove the bolts and the

Remove the bolts and the cover.

Remove the lid.

Remove the lid.

►Passenger’s side instrument panel

Remove the cover.

Remove the cover.

Remove the lid.

Remove the lid.

layout and amperageAfter a system failure, see “Fuse layout and amperage ratingsâ€�  for details about which fuse to check.

After a system failure, see “Fuse layout and amperage

After a system failure, see “Fuse layout and amperage ratingsâ€� (→P. 784) for details about which fuse to check.

►Type A and BCheck if the fuse has blown.

►Type A and B

1 Normal fuse

1 Normal fuse
2 Blown fuse

Replace it with one of an appropriate amperage rating.

The amperage rating can be found on the fuse box lid.

►Type C and D

►Type C and D

1 Normal fuse

1 Normal fuse
2 Blown fuse

Contact your Lexus dealer.

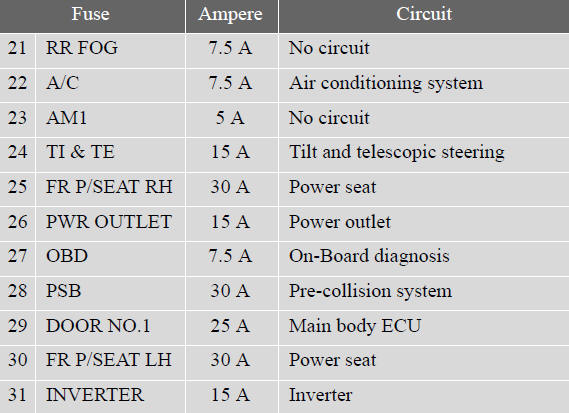

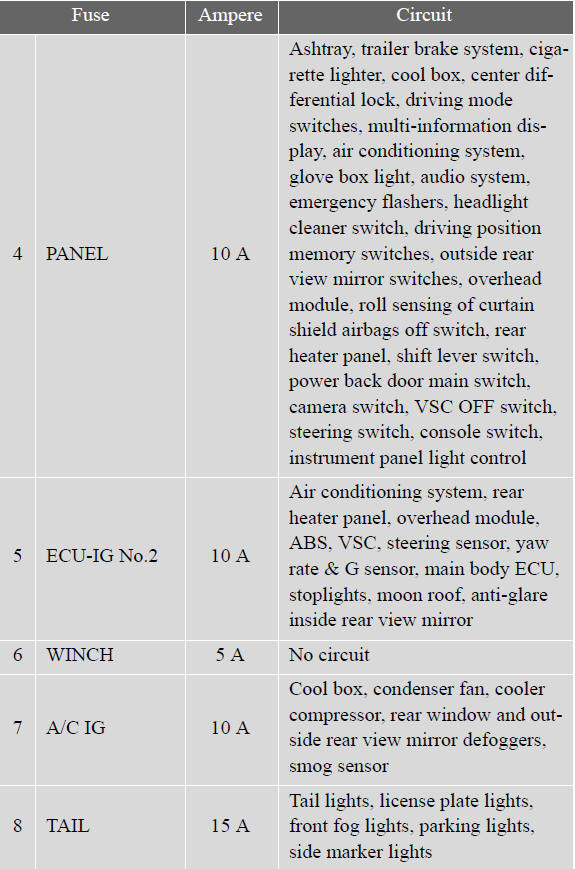

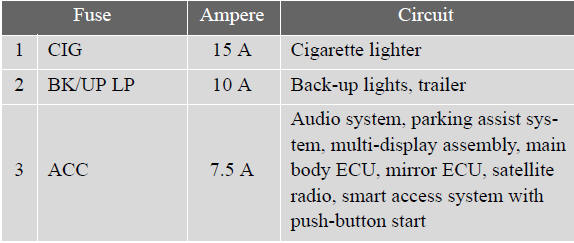

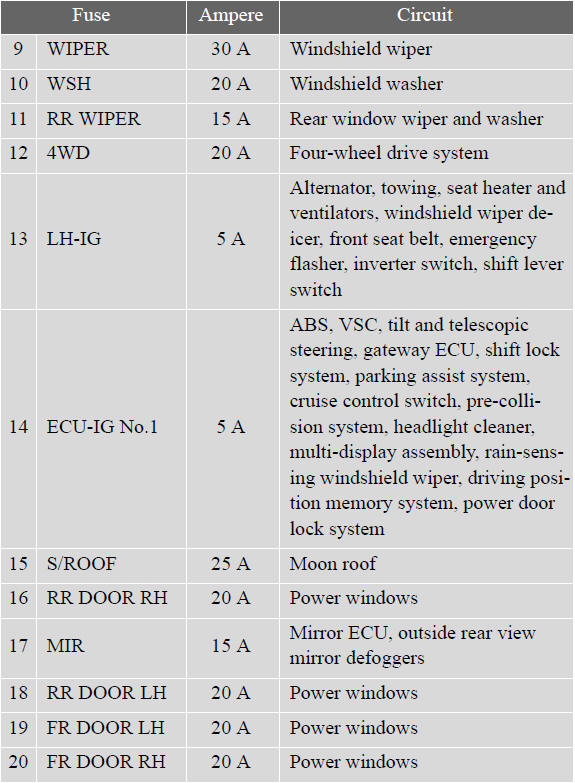

Fuse layout and amperage ratings

Fuse layout and amperage ratings

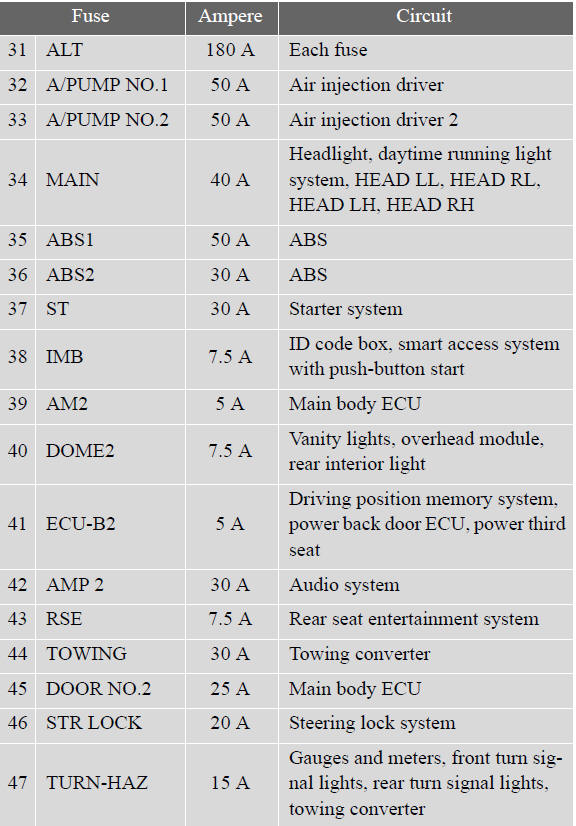

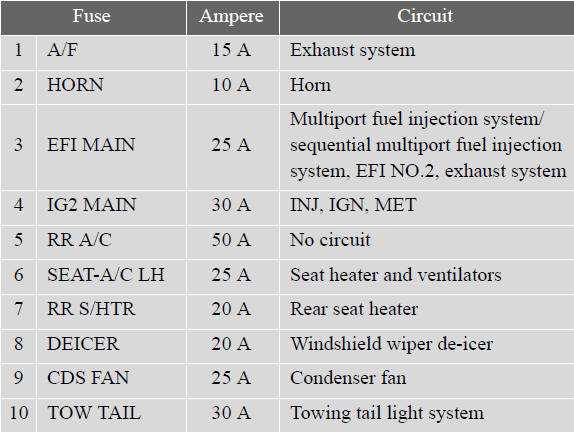

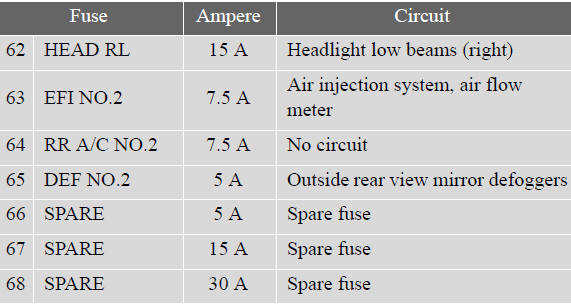

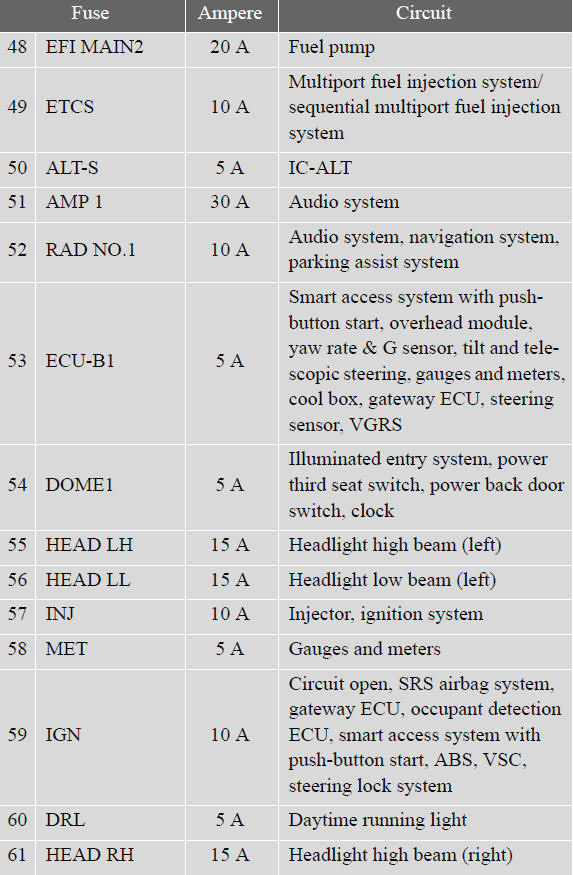

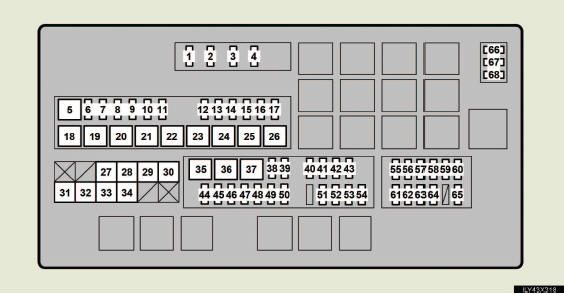

- Engine compartment

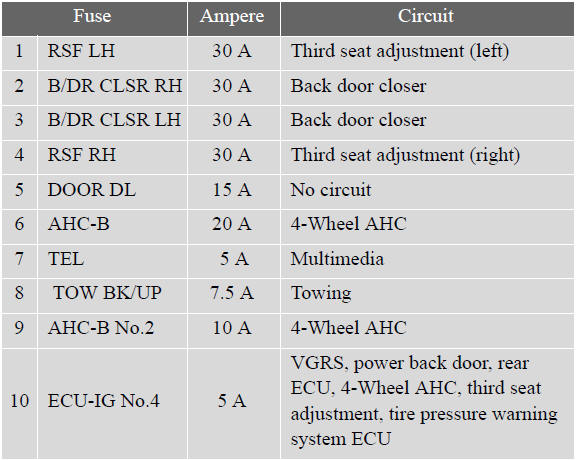

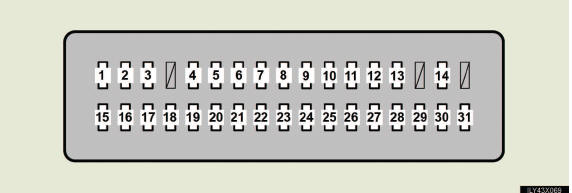

- Driver’s side instrument panel

- Driver’s side instrument panel

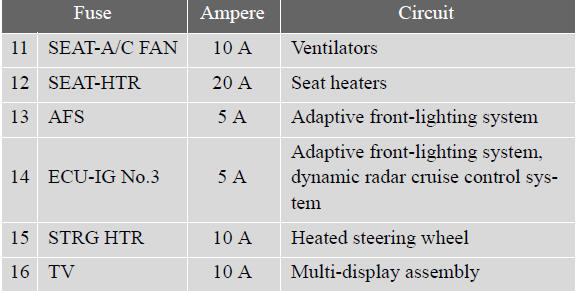

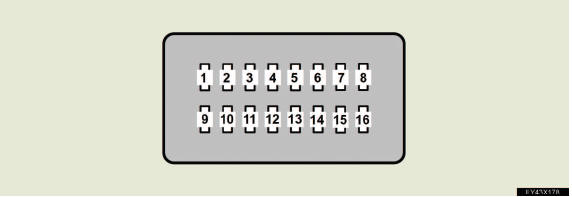

- Passenger’s side instrument panel

- Passenger’s side instrument panel

- After a fuse is replaced

- After a fuse is replaced
l If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement.

l If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.

- If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.

CAUTION

- To prevent system breakdowns and vehicle fire
Observe the following precautions.

Failing to do so may cause damage, and possibly a fire or injury.

l Never use a fuse of a higher amperage rating than indicated, or use any other object in place of a fuse.

l Always use a genuine Lexus fuse or equivalent.

Never replace a fuse with a wire, even as a temporary fix.

This can cause extensive damage or even fire.

l Do not modify the fuse or the fuse box.

NOTICE

- Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer.
