Multi-terrain Select

Multi-terrain Select is a system that helps drivability in off-road situations.

Select a mode that most closely matches the type of terrain on which you are driving from among 4 modes.

Engine control and brake control can be optimized in accordance with the selected mode.

1. Menu switch

1. Menu switch

2. “ENTER” switch

3. Multi-information display

Displays status information including operating status and road type selection.

4. Multi-terrain Select indicator

Selectable modes

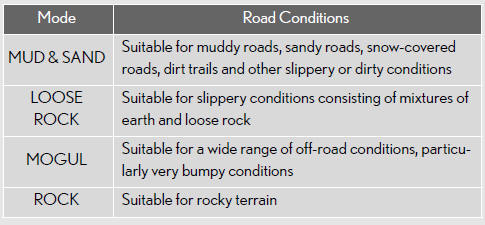

A mode which matches the road conditions can be selected from among the following 4 modes.

Switching modes

Switching modes

Push the menu switch.

Push the menu switch.

The multi-information display will change to electronic fea- tures control mode.

Press the “ENTER” switch upwards or downwards until “MULTI-TERRAIN SELECT” appears

Press the “ENTER” switch upwards or downwards until “MULTI-TERRAIN SELECT” appears and then press the “ENTER” switch.

The mode selection screen is displayed.

Press the “ENTER” switch upwards or downwards to select a desired mode and then

Press the “ENTER” switch upwards or downwards to select a desired mode and then press the “ENTER” switch.

The system switches to the selected mode, and the multi- terrain select indicator will turn on.

Once the mode has been set, the mode name will be dis- played and operation will

Once the mode has been set, the mode name will be dis- played and operation will com- mence.

Statement on the multi-information display

After mode selection

1. OFF

1. OFF

Turn the system off

2. MODE SELECTION

Change the mode

3. CAM. POSITION

Switch the displayed image when using the Multi-terrain Monitor

4. DISP. GUIDANCE

Explain other necessary opera- tions when selecting a mode

5. Status

Display the status of the system

The displayed content may differ in accordance with the system status.

Operation guidance

Operation guidance is shown on the multi-information display when you cannot set a mode.

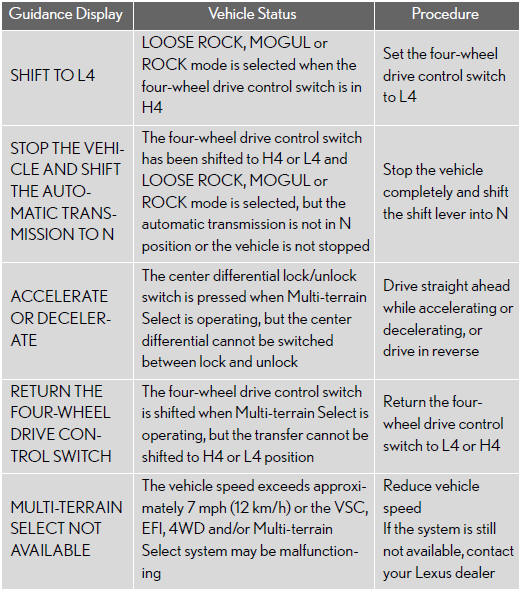

When the operation guidance is shown on the multi-information dis- play, follow the instructions in the table.

The Multi-terrain Select can be operated when

The Multi-terrain Select can be operated when

• Vehicle speed is less than 7 mph (12 km/h)

• Crawl Control is off

When using Multi-terrain Select

The following functions cannot be switched on or off.

• VSC

• Active TRAC

• Second start mode

A message will be shown on the multi-information display stating that these func- tions cannot be switched using the VSC OFF switch or the menu and “ENTER” switches.

When selecting a terrain mode

If you are unsure which mode is appropriate, select MOGUL when the four-wheel drive control switch is in L4 or select MUD & SAND when it is in H4.

When it is difficult to generate traction

MUD & SAND mode provides the largest amount of tire slippage, followed by LOOSE ROCK, MOGUL and ROCK mode.

Drivability can be improved by selecting a mode which provides a smaller amount of tire slippage than the current mode when the amount of tire slippage is large, or conversely selecting a mode which provides a larger amount of tire slippage than the current mode when the amount of tire slippage is small.

When the vehicle is stuck

Switching the transfer and differential

For the operation of the following functions, refer to the following pages.

• Four-wheel drive system

• Center differential lock

When the TRAC or Active TRAC operates continuously

When the four-wheel drive control switch is in L4 position

If the Multi-terrain Select system is not operating and the four-wheel drive control switch is in L4, TRAC OFF will be shown on the multi-information display.

When there is a malfunction in the system

The Multi-terrain Select indicator light will blink. Have the vehicle inspected by your Lexus dealer immediately

CAUTION

When using the Multi-terrain Select

Observe the following precautions to avoid an accident that could result in death or serious injuries:

• There is a chance that the selected mode may not be the most appropriate in terms of road conditions such as pitch, slipperiness, undulation, etc.

• Multi-terrain Select is not intended to expand the limits of the vehicle. Check the road conditions thoroughly beforehand, and drive safely and carefully.

NOTICE

Precaution for use

The Multi-terrain Select is intended for use during off-road driving. Do not use the system at any other time.
