Bluetooth® audio system

The Bluetooth® audio system enables you to enjoy music played on a portable digital audio player (portable player) from the vehicle speakers via wireless communication.

This audio system supports Bluetooth®, a wireless data system capable of playing portable audio music without cables. If your portable player does not support Bluetooth®, the Bluetooth® audio system will not function.

Vehicles with a navigation system

Refer to the “Navigation System Owner’s Manual”.

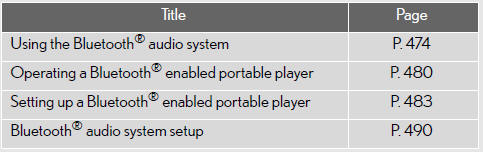

Vehicles without a navigation system

 - Conditions under which the system will not operate

 - Conditions under which the system will not operate

• If using a portable player that does not support Bluetooth®

• If the portable player is switched off

• If the portable player is not connected

• If the portable player’s battery is low

• If the portable player is behind the seat or in the glove box or console box

• If metal is covering or touching the portable player

 - When transferring ownership of the vehicle

Be sure to initialize the system to prevent personal data from being improperly accessed.

 - About Bluetooth®

Bluetooth is a registered trademark of Bluetooth SIG. Inc.

 - Compatible models

 - Compatible models

• Bluetooth® specifications:

Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)

• Following Profiles:

• A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher

• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.3 or higher recommended)

Portable players must correspond to the above specifications in order to be con- nected to the Bluetooth® audio system. However, please note that some functions may be limited depending on the type of portable player.

 - Certification for the Bluetooth® audio system


IC ID: 775E-K018


This device complies with Part 15 of the FCC Rules and RSS-Gen of IC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.



Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Radio Frequency Radiation Exposure. This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio fre- quency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and oper- ated with at least 7.9 in. (20 cm) and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs).

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

 - Caution while driving

Do not connect portable players or operate the controls.


 - To prevent damage to portable players

Do not leave portable players in the vehicle. The temperature inside the vehicle may become high, resulting in damage to the player.
