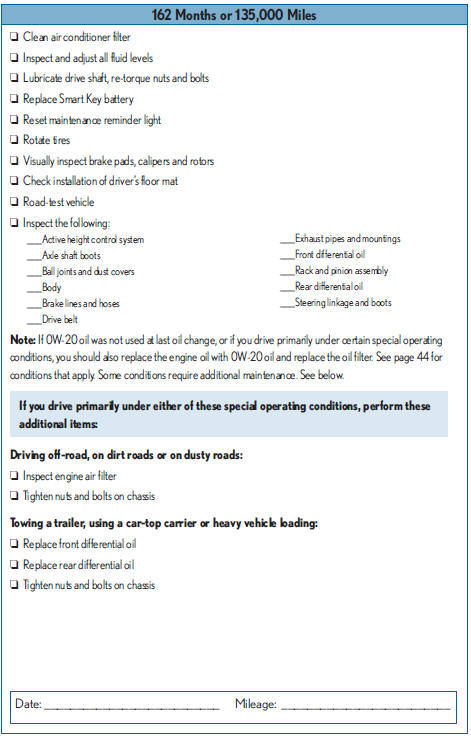

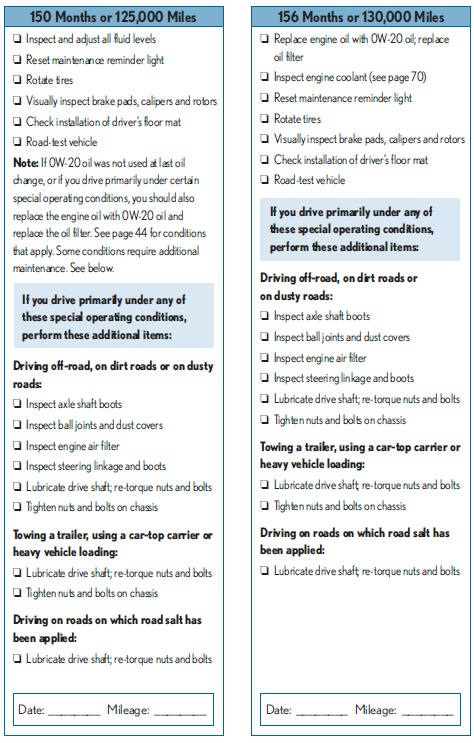

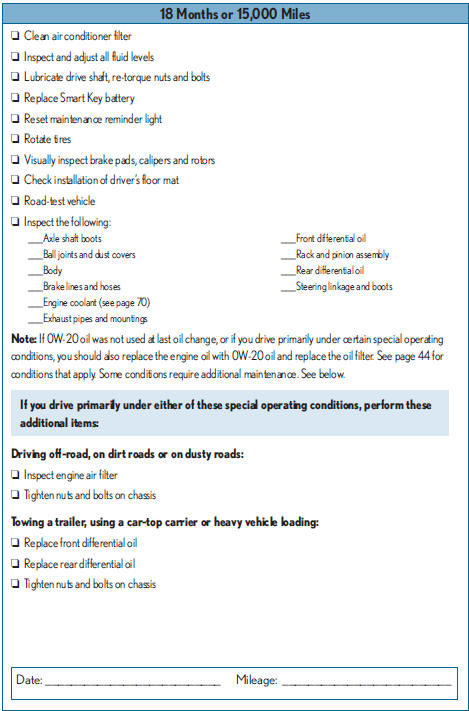

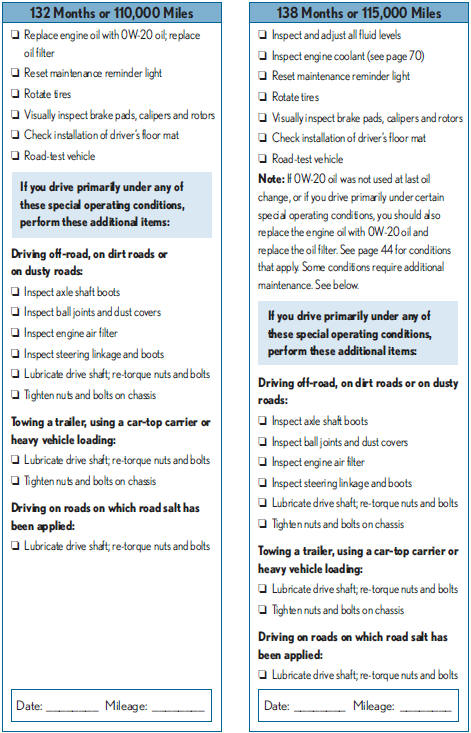

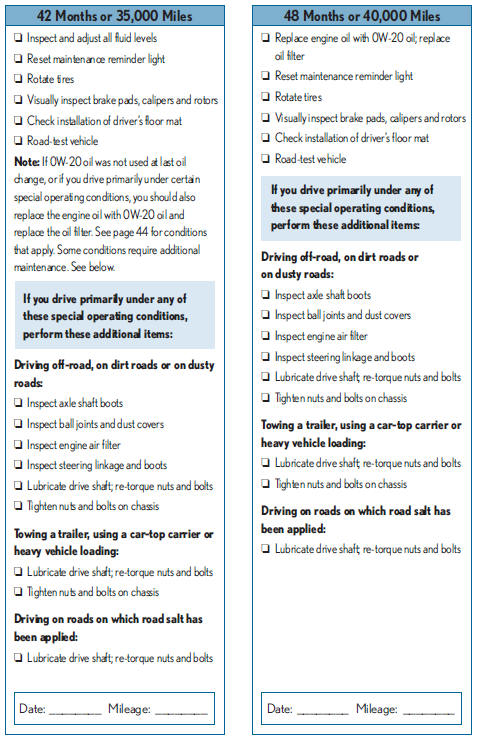

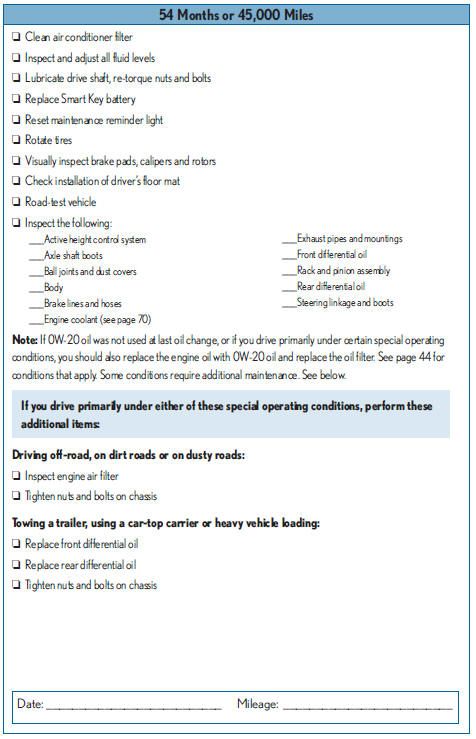

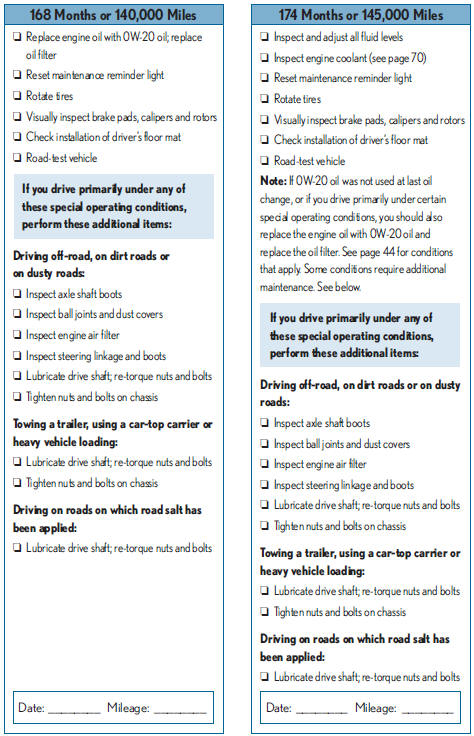

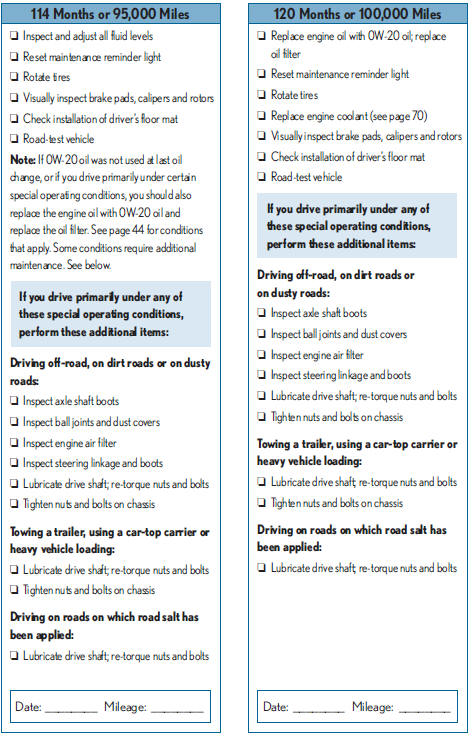

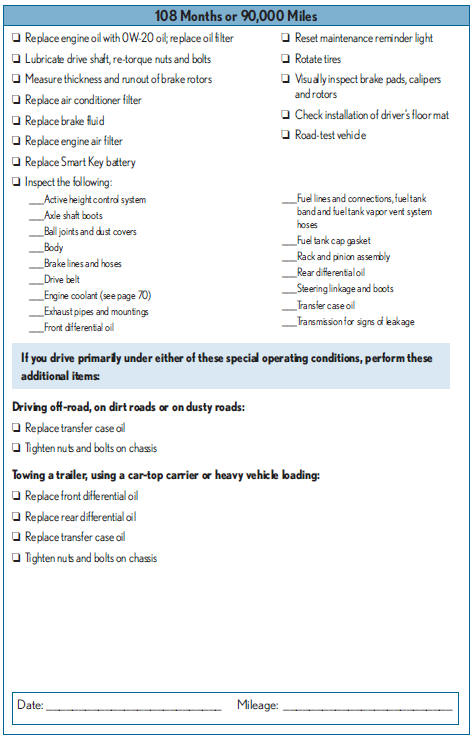

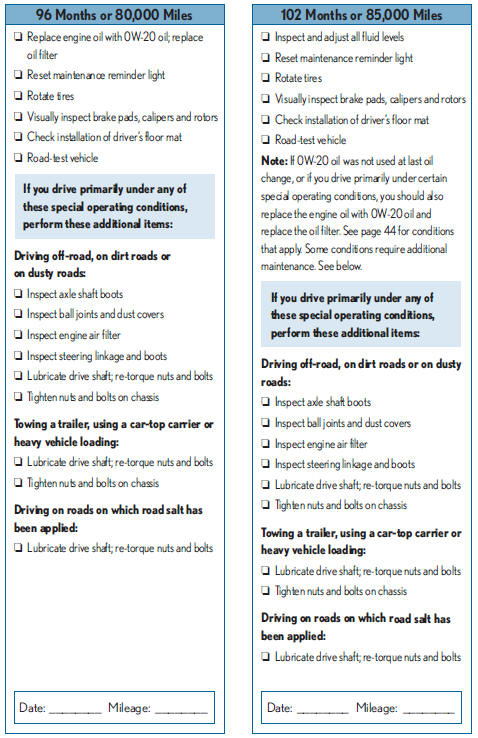

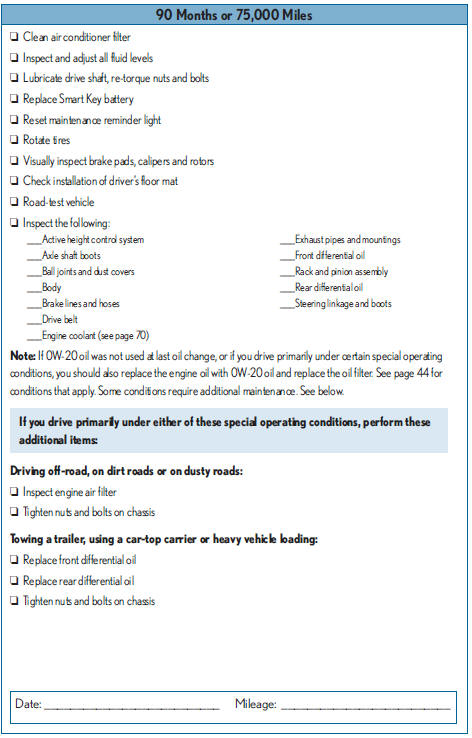

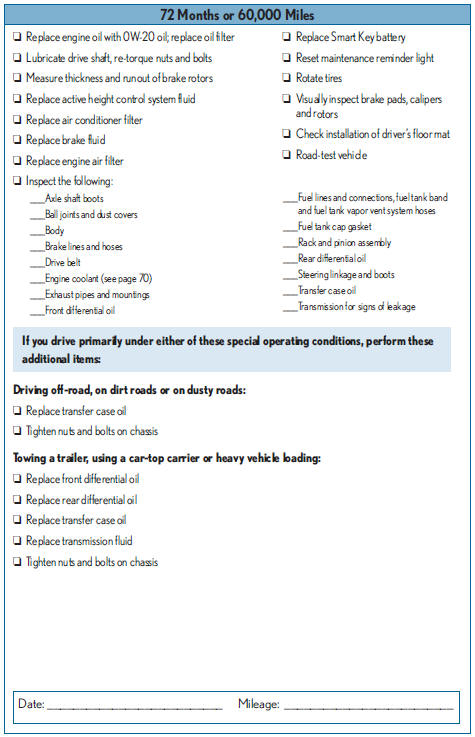

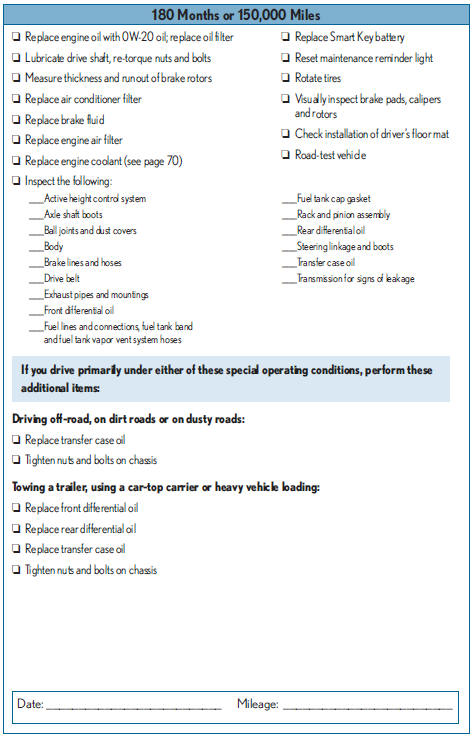

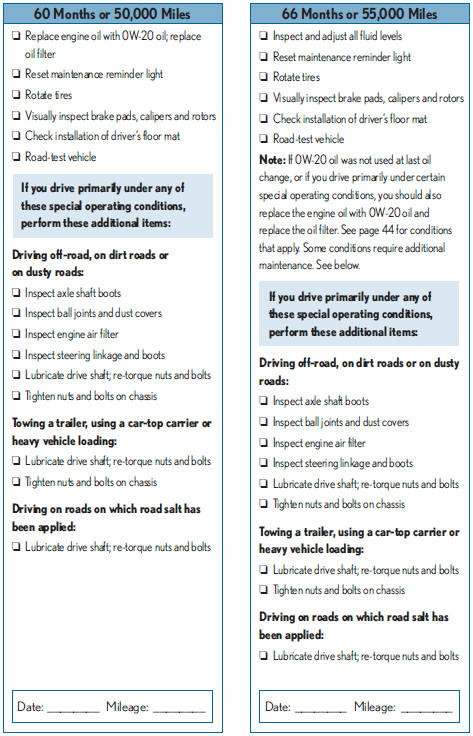

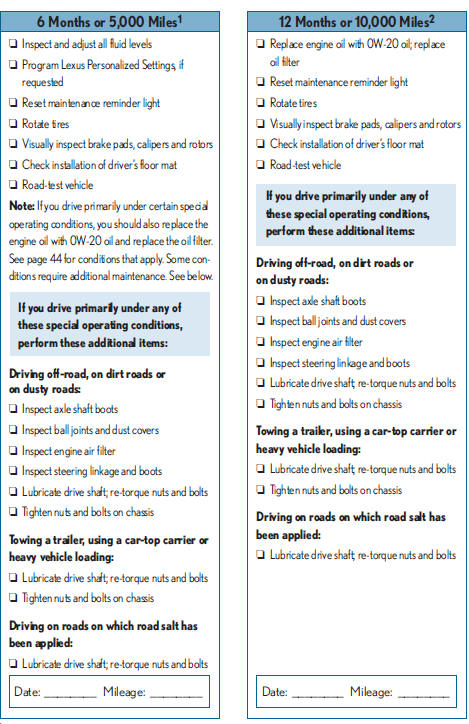

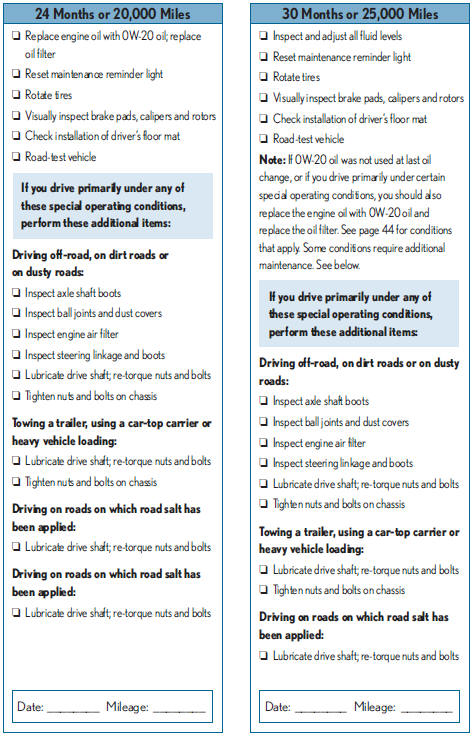

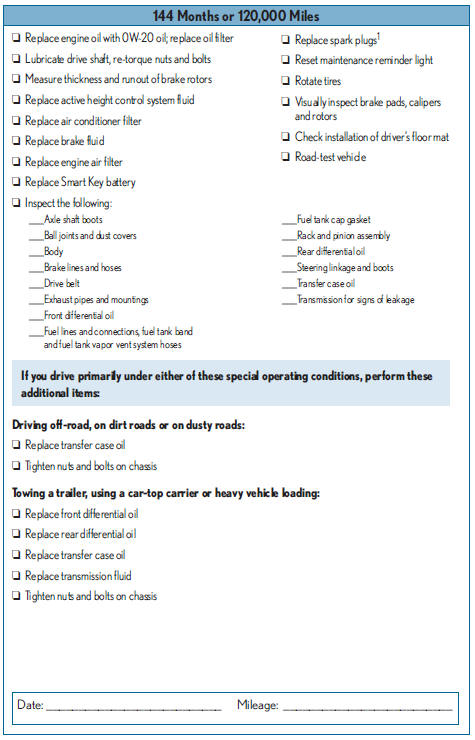

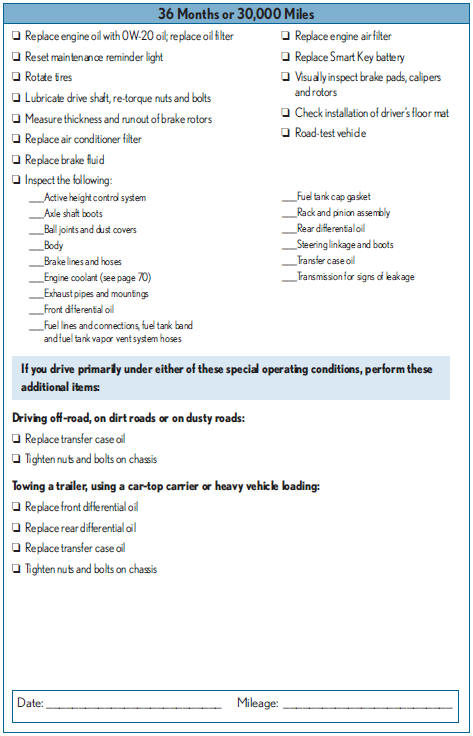

Scheduled Maintenance Log
1This service, excluding maintenance required for special operating
conditions, is complimentary when performed by an
authorized Lexus dealership.
2This service is complimentary when performed by an authorized Lexus dealership.
